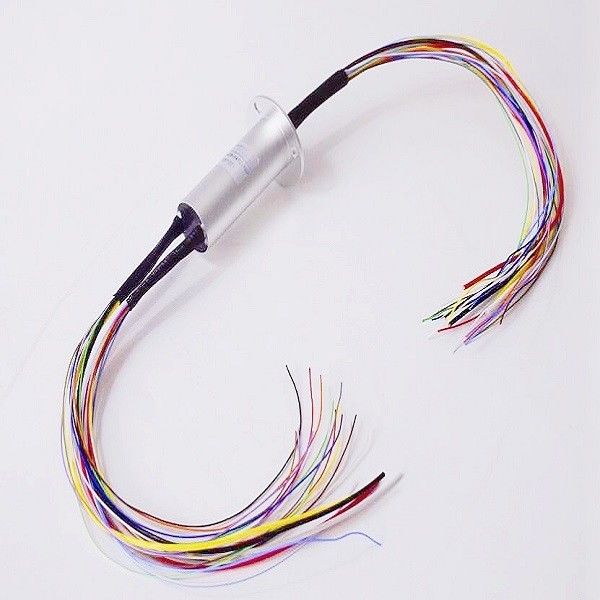

44mm Flange IP51 Capsule Slip Ring 22 Wires For Radar System

44mm Flange IP51 Capsule Slip Ring 22 Wires For Radar System

  • 44mm Flange IP51 Capsule Slip Ring 22 Wires For Radar System
  • 44mm Flange IP51 Capsule Slip Ring 22 Wires For Radar System
44mm Flange IP51 Capsule Slip Ring 22 Wires For Radar System
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,UL,ISO9001
Model Number: ACN25-04P2-18P
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: Off the shelf
Payment Terms: T/T,Paypal,Western Union, L/C
Supply Ability: 10000pcs month
Contact Now
Detailed Product Description
Current: 18* Signal,4 *10A Voltage: 0~240VAC/VDC
OD: Φ25 Mm Electrical Noise: 10m Ω Max
Contact Material: Precious Metal Protection Grade: IP51
Housing Material: Aluminium Alloy Operating Speed: 0~250 Rpm
High Light:

IP51 Capsule Slip Ring

,

250rpm Capsule Slip Ring

,

250rpm metal Slip Ring

44mm Flange IP51 Capsule Slip Ring 22 Wires For Radar System





Capsule Slip Ring with 44mm flange and 22 wires For Signal & Power Transmission,used for robotics,radar system



This slip ring with 44mm flange 22 wires, with 18 rings signal integrated 4 rings 10A.Compact size, flange install, stainless steel material, high quality, reasonable price.We not only provide products, but also provide solutions! according to different requirements for electrical, signal, data, gas and liquid rotary connection, as well as different power parameter requirements, we provide the best solution to save your time and cost.The ACN series electrical slip rings feature a low torque design with gold to gold contacts and offer low electrical noise. The ACN series also includes flexible, color-coded lead wires suitable for transferring analog and digital signals. Standard models are available from 6 to 56 circuits.




Specification





ACN25-04P2-18P Specification
Circuits & Current 18* signal,4 *10A
Voltage 0~240VAC/VDC
Electrical noise Max 10mΩ (50rpm)
Dielectric strength ≥500V@50Hz
Insulation resistance ≥500MΩ@500VDC
Operating speed 0-250 rpm
Contact material Precious metal
Housing material Aluminium alloy
IP protection grade IP51
Working temperature -20°~+80°C





Applications

  • Radar system
  • Military equipment
  • Medical equipment
  • Industrial automation equipment
  • Wind power equipment
  • Test equipment
  • Turntable equipment
  • Robotics
  • Display equipment
  • Cameras







Features

  • Compact size.
  • Adopt military grade surface treatment,gold to gold contacts
  • Transmit data and analog signal,compatible with bus protoco
  • Low torque, smooth rotation
  • High-performance
  • Flange installation
  • Working speed 250 rpm
  • Temperature -20°~+80°C





Optional

  • Circuit number
  • Lead wire length
  • Operating speed
  • IP protection grade







Outline drawing







44mm Flange IP51 Capsule Slip Ring 22 Wires For Radar System 0









Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.



FAQ



1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.



3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.



Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



Certification

ISO9001,CE,RoHS,UL,Explosion-proof



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
