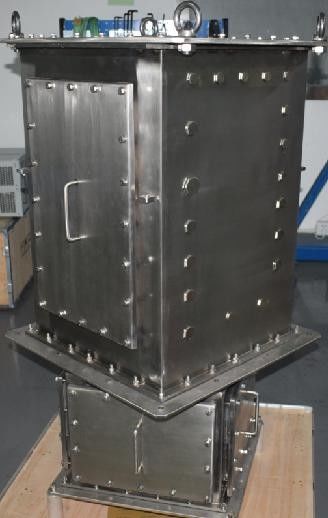

690VAC Crane Slip Ring Safely Current Carrying Capacity IP 56 Protection Grade

690VAC Crane Slip Ring Safely Current Carrying Capacity IP 56 Protection Grade

  • 690VAC Crane Slip Ring Safely Current Carrying Capacity IP 56 Protection Grade
  • 690VAC Crane Slip Ring Safely Current Carrying Capacity IP 56 Protection Grade
  • 690VAC Crane Slip Ring Safely Current Carrying Capacity IP 56 Protection Grade
690VAC Crane Slip Ring Safely Current Carrying Capacity IP 56 Protection Grade
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: BHCN-10P-20P3-02P2-09S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Cartons/As request
Delivery Time: 1 weeks
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Circuit: 3*550A(690VAC),3*80A(230VAC),3*50A(480VAC), 20*15A,2*10A,9*signal Rating Voltage: 690VAC/480VAC/230VAC/24VAC
Operating Speed: 0-1rpm Contact Material: Copper Graphite,silver-coated Brush
Insulation Resistance: 500MΩ@500VDC,300MΩ@100VDC Protection Grade: IP56
High Light:

collector slip ring

,

cable reel slip ring

690VAC Carbon Brush Slip Ring Safely Current Carrying Capacity







CENO's carbon Brush slip ring is also named as large current collector or high power slip ring, which could transmit the current at lease on 100A or above. It widely be used in ship machinery, engineering machinery, port machinery, offshore crane, cable reel, propeller,as well as drilling platform.









Features

  • Safely current carrying capacity
  • Long lifespan, maintenance-free
  • Various type of signal could be integrated



Applications

  • Marine crane
  • Propulsion
  • Drill crane



Optional



  • IP protection grade
  • Current rating
  • Signal type



Specification



Parameter
Current

3*550A(690VAC),3*80A(230VAC),3*50A(480VAC),

20*15A,2*10A,9*signal

Protection grade IP56
Rating voltage 690VAC/480VAC/230VAC/24VAC Working temperature -10℃~+55℃
Resistance insulation 500MΩ@500VDC,300MΩ@100VDC Working Humidity <90%RH
Dielectric strength ≥1000VAC@60Hz Working rotating 0~1rpm
Resistance fluctuation ≤70mΩ Contact material Copper graphite,silver-coated brush









Outline drawing



690VAC Crane Slip Ring Safely Current Carrying Capacity IP 56 Protection Grade 0









Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



690VAC Crane Slip Ring Safely Current Carrying Capacity IP 56 Protection Grade 1



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

690VAC Crane Slip Ring Safely Current Carrying Capacity IP 56 Protection Grade 3



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
