155 Diameter Custom Slip Ring Large Aperture Long Lifespan Feature

155 Diameter Custom Slip Ring Large Aperture Long Lifespan Feature

    • 155 Diameter Custom Slip Ring Large Aperture Long Lifespan Feature
    • 155 Diameter Custom Slip Ring Large Aperture Long Lifespan Feature
    • 155 Diameter Custom Slip Ring Large Aperture Long Lifespan Feature
    • 155 Diameter Custom Slip Ring Large Aperture Long Lifespan Feature
  • 155 Diameter Custom Slip Ring Large Aperture Long Lifespan Feature

    Product Details:

    Place of Origin: China
    Brand Name: CENO
    Certification: CE,RoHS,ISO9001,UL
    Model Number: ECN155-04S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Carton/As request
    Delivery Time: 1 week
    Payment Terms: T/T,Paypal, Western Union
    Supply Ability: 1000pcs per month
    Contact Now
    Detailed Product Description
    Current: 4*K Type Thermocouple Signal Rating Voltage: 380VAC
    Working Speed: 0~100rpm Protection Grade: IP54
    High Light:

    high voltage slip ring

    ,

    digital slip ring

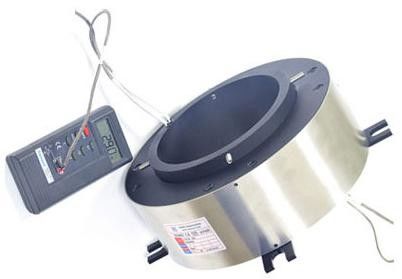

    155 Diameter Large Aperture  Slip Ring  With Long Lifespan Feature




    CENO company can custom to produce large aperture slip ring with 1-160 circuits,adopt the latest structure and creative design,and there is a special large customized bearing way to ensure the stability of the slip ring in operation and the long lifespan.




    we can custom to  make various slip ring as requested !





    Features

    • High protection grade
    • Could be used outdoor
    • Long lifespan, maintenance-free
    • Various type of signal could be integrated



    Application

    • Circuit number
    • Sewage treatment
    • Material delivery equipment




    Option

    • Circuit number
    • Current size
    • Protection grade
    • Signal type







    Specification



    Parameter
    Circuit 4*K type thermocouple signal Protection Grade IP54
    Voltage 380VAC Temperature -20℃~+60℃
    Insulation Resistance ≥100MΩ@300VDC Humidity ≤60%RH

    Dielectric

    Strength

    ≥300VAC@50Hz Rotating speed 0~100rpm
    Resistance fluctuation ≤70mΩ(50rpm) Contact Material Aluminum alloy sandblasting oxidation black
    Diameter Ø155 Wire spec K type thermocouple





    Outline Drawing



    155 Diameter Custom Slip Ring Large Aperture Long Lifespan Feature 0





    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    155 Diameter Custom Slip Ring Large Aperture Long Lifespan Feature 1



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel



    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    155 Diameter Custom Slip Ring Large Aperture Long Lifespan Feature 3



    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.





    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
