8 Core Double Shield Wire Large Slip Ring Apply To Environmental Protection Equipment

8 Core Double Shield Wire Large Slip Ring Apply To Environmental Protection Equipment

    • 8 Core Double Shield Wire Large Slip Ring Apply To Environmental Protection Equipment
    • 8 Core Double Shield Wire Large Slip Ring Apply To Environmental Protection Equipment
    • 8 Core Double Shield Wire Large Slip Ring Apply To Environmental Protection Equipment
    • 8 Core Double Shield Wire Large Slip Ring Apply To Environmental Protection Equipment
  • 8 Core Double Shield Wire Large Slip Ring Apply To Environmental Protection Equipment

    Product Details:

    Place of Origin: China
    Brand Name: CENO
    Certification: CE,RoHS,ISO9001,UL
    Model Number: ECN280-8P-8S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Carton/As request
    Delivery Time: 1 week
    Payment Terms: T/T,Paypal, Western Union
    Supply Ability: 1000pcs per month
    Contact Now
    Detailed Product Description
    Current: 8*signal,8*15A Rating Voltage: 220VAC
    Working Speed: 2~8rpm Protection Grade: IP54
    Diameter: Ф280 Contact Material: Copper Graphite
    High Light:

    big bore slip ring

    ,

    digital slip ring

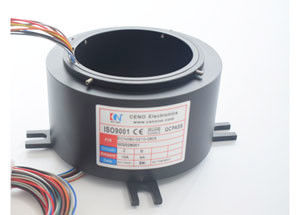

     8 Core Double Shield Wire Big Size  Slip Ring  For  Environmental Protection Equipment





    Big size slip-ring is named for its large size. It gets big through hole size and high protection level, is generally used in larger equipment and systems.The system can be fitted directly to the center of the rotation,to resolve the transmission problem of current and signal. This kind of large size slip ring with high protection grade is widely used in sewage treatment, large material transfer equipment and other systems.



    we can custom to make various slip ring as requested !



    Application



    • Automation equipment
    • Foodstuff processing machinery
    • Environmental protection equipment





    Features

    • High protection class
    • Long lifespan, maintenance-free
    • Various type of signal could be integrated
    • Low Torque ,low loss ,low electrical noise




    Option

    • Circuit number
    • Current size
    • Protection grade
    • Signal type







    Specification



    Parameter
    Circuit 8*signal,8*15A Protection Grade IP54
    Voltage 220VAC Temperature -20℃~+60℃
    Insulation Resistance ≥100MΩ@100VDC Humidity 0~90%RH

    Dielectric

    Strength

    ≥500VAC@50Hz Rotating speed 2~8rpm
    Resistance fluctuation ≤70mΩ Contact Material graphite
    Diameter Ф280mm Wire spec 8 core double shield wire(0.2mm²)



    Outline Drawing





    8 Core Double Shield Wire Large Slip Ring Apply To Environmental Protection Equipment 0





    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    8 Core Double Shield Wire Large Slip Ring Apply To Environmental Protection Equipment 1



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel



    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    8 Core Double Shield Wire Large Slip Ring Apply To Environmental Protection Equipment 3



    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.





    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
