Deutsch Connector IP65 15rpm Capsule Slip Ring

Deutsch Connector IP65 15rpm Capsule Slip Ring

    • Deutsch Connector IP65 15rpm Capsule Slip Ring
  • Deutsch Connector IP65 15rpm Capsule Slip Ring

    Product Details:

    Place of Origin: China
    Brand Name: CENO
    Certification: CE,RoHS,ISO9001,UL
    Model Number: ECN000-21P-05P2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Carton/As request
    Delivery Time: 1 week
    Payment Terms: T/T,Paypal, Western Union
    Supply Ability: 1000pcs per month
    Contact Now
    Detailed Product Description
    Contact Material: Precious Metal Rating Voltage: 0~200VAC/DC
    Working Speed: 0~15rpm Current: 21*3A,5*10A
    IP Protection Grade: IP65 Dielectric Strength: ≥1000V@50Hz
    High Light:

    Deutsch Connector Capsule Slip Ring

    ,

    15rpm Capsule Slip Ring

    ,

    IP65 Shaft Slip Ring









    Capsule Slip Ring With Deutsch Connector

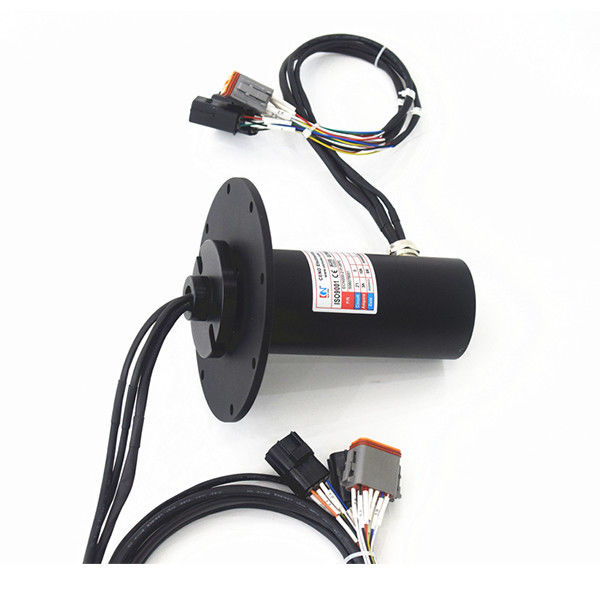

    This solid shaft slip ring is designed for excavator application. there are Deutsch connector and AMP connector on rotor and stator side to simplify the connection. rotor side has a big flange for easy mounting,IP protection grad is IP 65,housing material is aluminum alloy.Compact structure and flexible installation,long service life.







    Specification



    ECN000-21P-05P2
    Current 21*3A,5*10A
    Voltage 0~200VAC/DC
    Electrical noise ≤30mΩ (at 5rpm)
    Dielectric strength ≥1000V@50Hz
    Insulation resistance ≥500MΩ@500VDC
    Operating speed 0-15 rpm
    Contact material precious metals
    Operating temperature -30~+80℃
    Housing material Aluminum alloy
    IP protection grade IP65





    Features

    • Compact structure and flexible installation
    • Low temperature resistance, shockproof
    • Long service life



    Applications

    • Excavator
    • Construction engineering
    • Engineering machinery


    Optional

    • Circuit number
    • Current rating
    • Lead wire
    • Rotation way



    Outline Drawing

    Deutsch Connector IP65 15rpm Capsule Slip Ring 0







    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    Deutsch Connector IP65 15rpm Capsule Slip Ring 1



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel



    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    Deutsch Connector IP65 15rpm Capsule Slip Ring 3



    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.





    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
