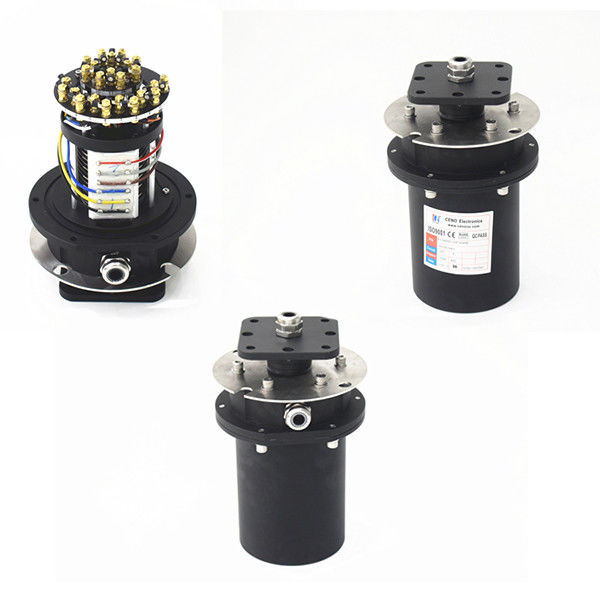

ECN000-11P-01PE 30rpm IP65 Rotary Joint Slip Ring

ECN000-11P-01PE 30rpm IP65 Rotary Joint Slip Ring

    • ECN000-11P-01PE 30rpm IP65 Rotary Joint Slip Ring
  • ECN000-11P-01PE 30rpm IP65 Rotary Joint Slip Ring

    Product Details:

    Place of Origin: China
    Brand Name: CENO
    Certification: CE,RoHS,ISO9001,UL
    Model Number: ECN000-11P-01PE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Carton/As request
    Delivery Time: 1 week
    Payment Terms: T/T,Paypal, Western Union
    Supply Ability: 1000pcs per month
    Contact Now
    Detailed Product Description
    Current: 11*25A,1*PE Rating Voltage: 0~415VAC/VDC
    Working Speed: 0-30 Rpm Protection Grade: IP65
    Housing Material: Aluminum Alloy Contact Material: Precious Metals
    High Light:

    30rpm Rotary Joint Slip Ring

    ,

    IP65 Rotary Joint Slip Ring

    ,

    ECN000-11P-01PE Digital Slip Ring













    Dust Proof Rotary Joint High Protection Housing



    This is a highly protective and dust-proof custom slip ring, mainly used in industrial fields, such as food machinery.

    The product structure is different from other ordinary slip rings. The terminals replace the wires, which is convenient to connect. At the same time, it strengthens the protection of the shell and provides a higher degree of protection IP65. It is suitable for special working conditions. Rotation in any direction has stood the test of long-term complex field practice.





    Specification



    ECN000-11P-01PE
    Current 11*25A,1*PE
    Voltage 0~415VAC/VDC
    Electrical noise ≤30mΩ(50rpm)
    Dielectric strength

    1500V@50Hz(power)

    500V@50Hz(signal)

    Insulation resistance

    500MΩ@500VDC(power)

    100MΩ@100VDC(power)

    Operating speed 0-30 rpm
    Contact material precious metals
    Operating temperature -20~+60℃
    Housing material aluminum alloy
    IP protection grade IP65





    Application

    • Seaport machinery
    • Platform crane
    • Propulsion
    • Cable reel



    Features



    • Waterproof and dust proof
    • The terminals replace the wires to easy connection
    • Stable performance and excellent quality



    Optional

    • Circuit number
    • Current rating
    • Installation way
    • IP protection grade





    Outline Drawing

    ECN000-11P-01PE 30rpm IP65 Rotary Joint Slip Ring 0









    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.





    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel



    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    ECN000-11P-01PE 30rpm IP65 Rotary Joint Slip Ring 2



    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.





    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
