380VAC IP54 25.4mm Air Rotary Joints For Package Equipment

380VAC IP54 25.4mm Air Rotary Joints For Package Equipment

    • 380VAC IP54 25.4mm Air Rotary Joints For Package Equipment
    • 380VAC IP54 25.4mm Air Rotary Joints For Package Equipment
  • 380VAC IP54 25.4mm Air Rotary Joints For Package Equipment

    Product Details:

    Place of Origin: China
    Brand Name: CENO
    Certification: ISO9001,CE,RoHS
    Model Number: QCN0103-10P-04EG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Carton
    Delivery Time: 2 weeks
    Payment Terms: T/T,Paypal, Western Union
    Supply Ability: 1000pcs per month
    Contact Now
    Detailed Product Description
    Air Channel Number: 1 Power & Signal: 10*20A,4*CAT5e
    Contact Material: Precious Metal Voltage: 380VAC/VDC
    Protection Grade: IP54 Through Hole Side: 25.4 Mm
    Transmission Medium: Gas Pressure Max: - 100Kpa~1Mpa
    High Light:

    25.4mm Air rotary joints

    ,

    380VAC Air rotary joints

    ,

    IP54 Air rotary joints

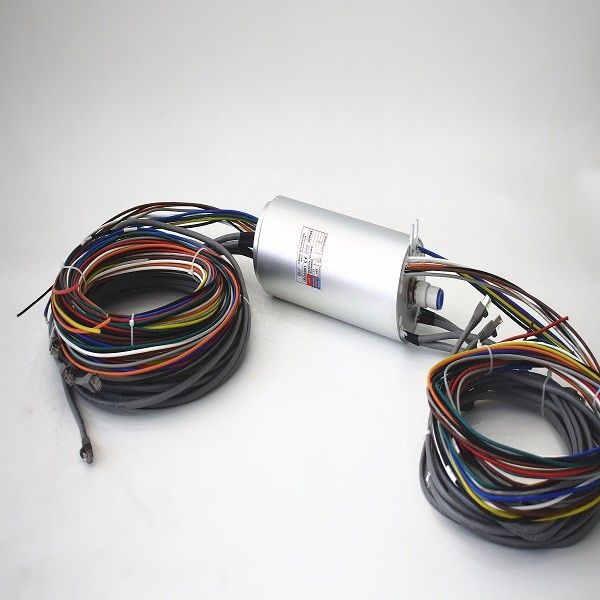

    380VAC IP54 25.4mm Air Rotary Joints For Package Equipment



    Air rotary joints with ID 25.4mm,operating speed 0~300 rpm, aluminum alloy shell



    Air rotary joints also are known as rotary swivels, widely used in numerous manufacturing processes to transfer pneumatic or hydraulic. this is light weight, compact size,two air flow passage rotary union with aluminum alloy and stainless steel construction.With many advantages long life ,rapid delivery ,transmit100M/1000M Ethernet ,integrate various signal,anti-interference.Long service life, maintenance-free



    Features



    • Transmission of compressed air and other gases, cooling water, coolant, etc
    • Low friction, long life,low torque, smooth rotation
    • Integrate power signal,hydraulic,pneumatic



    Applications

    • Lithium electric production equipment
    • Numerical control machine tool
    • Package equipment
    • Industrial automation equipment
    • Medical equipment
    • Wind power equipment
    • Test equipment



    Optional

    • Air channel
    • Current rating
    • Pipe diameter
    • Housing material



    Specification

    Circuits

    10*20A,4*CAT5e,1*gas(G3/8’’)
    Voltage 0~380VAC/VDC
    Electrical noise ≤70mΩ(50rpm)
    Dielectric strength

    ≥1000V@50Hz(power)

    ≥300V@50Hz(signal)

    Insulation resistance

    ≥500MΩ@500VDC(power)

    ≥100MΩ@500VDC(power)

    Operating speed 0-300 rpm
    Contact material Precious metal
    Housing material Sandblast conductive oxidation of aluminum alloy
    IP protection grade IP54
    Through hole size 25.4mm
    Pressure Max - 100Kpa~1Mpa



    Outline Drawing







    380VAC IP54 25.4mm Air Rotary Joints For Package Equipment 0



    Our Service

    1. Reply inquiry in 24 hours.

    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

    3. Answer your question detailed.

    4. Solved the problem with you during using our products.

    5. Samples will be offered to you for our future cooperation.



    FAQ



    1. What do we do?

    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



    2. How long have we been in the business?

    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.



    3. What is a slip ring?

    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



    4. How do I choose a slip ring?

    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



    5. Do you offer custom slip rings?

    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.



    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    380VAC IP54 25.4mm Air Rotary Joints For Package Equipment 1



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel



    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.



    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
