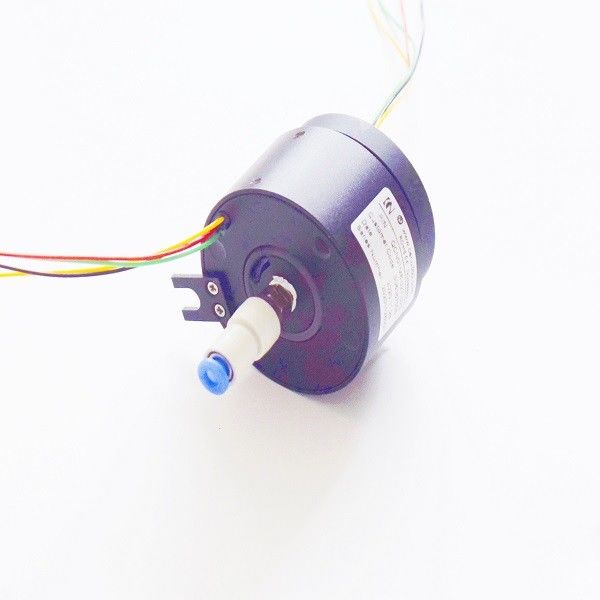

Compact Design 250rpm 1Mpa Air Rotary Union For Oil Well

Compact Design 250rpm 1Mpa Air Rotary Union For Oil Well

    • Compact Design 250rpm 1Mpa Air Rotary Union For Oil Well
    • Compact Design 250rpm 1Mpa Air Rotary Union For Oil Well
  • Compact Design 250rpm 1Mpa Air Rotary Union For Oil Well

    Product Details:

    Place of Origin: China
    Brand Name: CENO
    Certification: ISO9001,CE,RoHS
    Model Number: QCN01M6-02P-02S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Carton
    Delivery Time: 2 weeks
    Payment Terms: T/T,Paypal, Western Union
    Supply Ability: 1000pcs per month
    Contact Now
    Detailed Product Description
    Air Channel Number: 1 Interface Size: M6*1.0 & 4mm Tube
    Operating Temperature: -20C°~+60C° Air Pressure: -100Kpa ~1Mpa
    Install Way: Flange Installation Housing Material: Aluminum Alloy
    Other Circuits: 2*2A,2*0.25A Working Speed: 0~250rpm
    High Light:

    1Mpa Air Rotary Union

    ,

    1Mpa Oil Well Rotary Union

    ,

    250rpm Oil Well Rotary Union

    Compact Design 250rpm 1Mpa Air Rotary Union For Oil Well



    Air rotary joint with single passage, compact design, lightweight,used for food processing,offshore equipment.





    It's an air rotary joint with single passage, compact, lightweight and corrosion-resistant featuring a stainless steel shaft and aluminum housing. All QCN series models come standard with a male threaded shaft and a female threaded housing for easy mounting. Need to combine fluid with electrical power, signal and data transfer.The QCN series rotary unions are designed to integrate directly with our standard electrical slip rings.Passage media types can use air/gas, chemical, tap water, oil,water.Typical application including automatic equipment,machinery manufacturing ,food processing etc.





    Features





    • Low torque
    • Smooth rotation
    • Integrated with power
    • 1 Channel for air
    • Working speed 250 rpm







    Applications

    • Medical equipment
    • Wind power equipment
    • Test equipment
    • Food processing
    • Machinery manufacturing
    • Automatic equipment
    • Offshore equipment
    • Oil well





    Optional

    • Air channel
    • Current rating
    • Pipe diameter
    • Housing material
    • Signal intgrate





    Specification



    QCN01M6-02P-02S Specification
    Circuits 1*air,2*2A,2*0.25A
    Interface size M6*1.0 & 4mm tube
    Voltage 0-12VAC/VDC
    Operating temperature -20C°~+60C°
    Air pressure -100Kpa ~1Mpa
    Housing material Aluminum alloy
    Working speed 0~250 rpm
    Protection grade IP51
    Install way Flange installation
    Contact material Precious metal









    Outline Drawing









    Compact Design 250rpm 1Mpa Air Rotary Union For Oil Well 0











    Our Service

    1. Reply inquiry in 24 hours.

    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

    3. Answer your question detailed.

    4. Solved the problem with you during using our products.

    5. Samples will be offered to you for our future cooperation.





    FAQ



    1. What do we do?

    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



    2. How long have we been in the business?

    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.



    3. What is a slip ring?

    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



    4. How do I choose a slip ring?

    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



    5. Do you offer custom slip rings?

    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.







    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    Compact Design 250rpm 1Mpa Air Rotary Union For Oil Well 1



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel



    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.



    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
