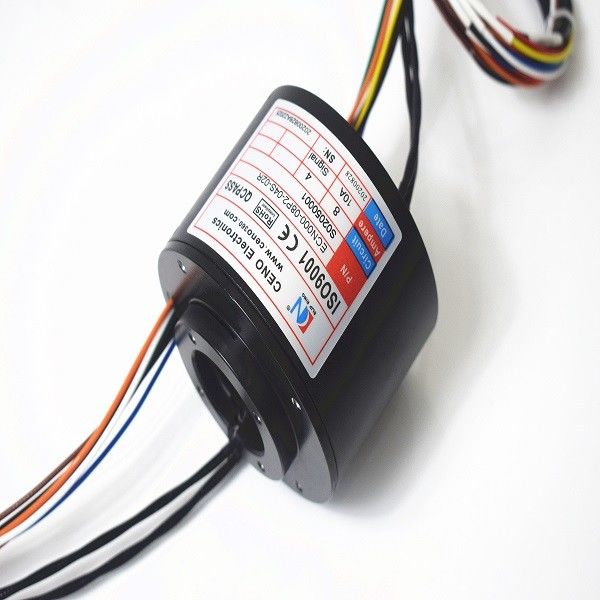

440VAC 255 Rpm Industrial Slip Ring For Turntable Equipment

440VAC 255 Rpm Industrial Slip Ring For Turntable Equipment

    • 440VAC 255 Rpm Industrial Slip Ring For Turntable Equipment
    • 440VAC 255 Rpm Industrial Slip Ring For Turntable Equipment
  • 440VAC 255 Rpm Industrial Slip Ring For Turntable Equipment

    Product Details:

    Place of Origin: China
    Brand Name: CENO
    Certification: CE,RoHS,ISO9001,UL
    Model Number: ECN000-08P2-04S-02R

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Carton/As request
    Delivery Time: 1 week
    Payment Terms: T/T,Paypal, Western Union
    Supply Ability: 1000pcs per month
    Contact Now
    Detailed Product Description
    Contact Material: Precious Metal Rating Voltage: 440VAC/VDC
    Working Speed: 0~255rpm Circuits: 8*10A,4*signal
    IP Protection Grade: IP54 Housing Material: Aluminium Alloy
    Operating Tempeature: -40C°~+80C° Electrical Noise: ≤10mΩ(50rpm)
    High Light:

    255 rpm Industrial Slip Ring

    ,

    440VAC Industrial Slip Ring

    ,

    440VDC Industrial Slip Ring

    440VAC 255 Rpm Industrial Slip Ring For Turntable Equipment





    Integrated slip ring with power and signal.Aluminium alloy housing,used for Turntable equipment ,Offshore equipment



    It’s a integrated slip ring with power and signal.CENO can make various signal such as Ethernet, USB,HDMI,SDI,Canbus,Profibus and power are capable to be integrated into one slip ring according to customer’s different request.it can also integrated high frequency,fiber,encoder,wave guide,gas and liquid and other joints.The typical application including industrial automation equipment,medical equipment,wind power equipment,test equipment etc.





    Specification



    ECN000-08P2-04S-02R
      8*10A,4*signal
    Voltage 440VAC/VDC
    Electrical noise ≤10mΩ(50rpm)
    Dielectric strength

    ≥1000V@50Hz(power)

    ≥300V@50Hz(signal)

    Insulation resistance

    ≥500MΩ@300VDC(power)

    ≥100MΩ@300VDC(signal)

    Operating speed 0-250 rpm
    Contact material Precious metal
    Housing material Aluminium alloy
    IP protection grade IP54
    Operating temperature -40C°~+80C°





    Features

    • Compact structure and flexible installation
    • Low temperature resistance, shockproof
    • Long service life
    • Power and signal are mixed
    • Maintenance-free
    • Easy to install
    • Competitively price





    Applications

    • Excavator
    • Construction engineering
    • Engineering machinery
    • Turntable equipment
    • Offshore equipment
    • Medical equipment
    • Wind power equipment
    • Test equipment




    Optional

    • Circuit number
    • Current rating
    • Rotation way
    • Through hole size
    • Signal type
    • IP protection grade
    • Wire length



    Outline Drawing

    440VAC 255 Rpm Industrial Slip Ring For Turntable Equipment 0









    Our Service

    1. Reply inquiry in 24 hours.

    2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

    3. Answer your question detailed.

    4. Solved the problem with you during using our products.

    5. Samples will be offered to you for our future cooperation.



    FAQ

    1. What do we do?

    We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



    2. How long have we been in the business?

    CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.



    3. What is a slip ring?

    A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



    4. How do I choose a slip ring?

    Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



    5. Do you offer custom slip rings?

    Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.





    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    440VAC 255 Rpm Industrial Slip Ring For Turntable Equipment 1



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel



    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

    440VAC 255 Rpm Industrial Slip Ring For Turntable Equipment 3



    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.





    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
