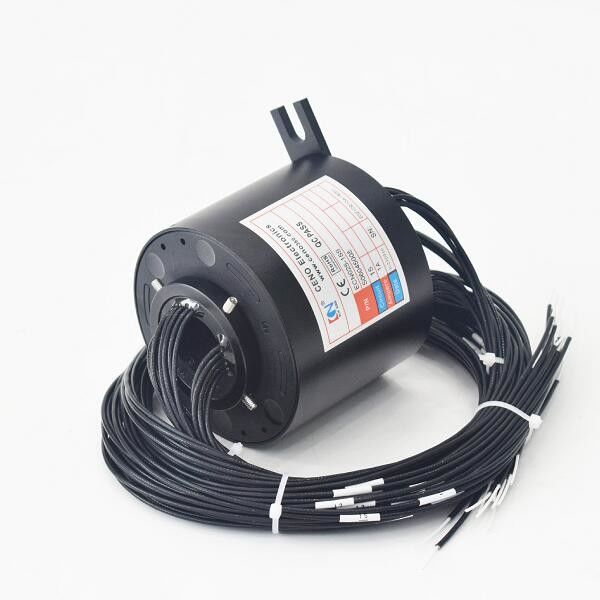

25.4mm Electrical Rotary Joint Slip Ring Smooth Rotation For Medical Machine

25.4mm Electrical Rotary Joint Slip Ring Smooth Rotation For Medical Machine

  • 25.4mm Electrical Rotary Joint Slip Ring Smooth Rotation For Medical Machine
  • 25.4mm Electrical Rotary Joint Slip Ring Smooth Rotation For Medical Machine
25.4mm Electrical Rotary Joint Slip Ring Smooth Rotation For Medical Machine
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN025-15S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 15*1A Through Bore Size: 25.4 Mm
Protection Grade: IP51 Working Speed: 0~300rpm
Contact Material: Precious Metal Rating Voltage: 0~35VAC/VDC
Housing Material: Aluminium Alloy Working Temperature: -20C°~ +60C°
Outer Diameter: 25.4mm
High Light:

25.4mm Electrical Rotary Joint

,

IP51 Electrical Rotary Joint

,

25.4mm electrical rotary union

25.4mm Electrical Rotary Joint Slip Ring Smooth Rotation For Medical Machine

Electrical rotary joint slip ring with inner bore 25.4mm working speed 300rpm with smooth rotation,for medical machine,military industrial and process control equipments.





Through hole slip ring can be used in any electromechanical system that requires unrestrained.Slip ring is also called a rotary electrical joint,collector,commutator or swivel,slip ring can improve system performance by simplifying operation and eliminating damage prone wires.The inner hole size can be customized from 0-980mm.ECN025-15S provides an economical,readily available solution when a compact through bore configuration is required.This unit provides 25.4 mm through bore for routing hydraulic or pneumatic lines and a compact 86mm outside diameter for minimal space applications.It’s can integrated Ethernet,USB2.0, HDMI,fieldbus signal.CENO can provide other customized solutions according customer’s requirements.






Specification



ECN025-15S                                     Specification
Rings15*1A
Voltage0~35VAC/VDC
Electrical noise≤30mΩ(50rpm)
Dielectric strength≥500V@50Hz
Insulation resistance≥250MΩ@250VDC
Operating speed0-300 rpm
Contact materialPrecious metal
Housing materialAluminium alloy
Working temperature-20℃~+60℃
IP protection gradeIP51
Through hole size25.4 mm



 Features

  • 25.4mm inner diameter
  • Smooth rotation
  • High performance
  • Smooth rotation




Applications

  • Exhibit Display machinery
  • Military industrial
  • Rotary index tables
  • Process control equipment




Optional

  • Through hole size
  • Current rating
  • Signal type
  • IP protection grade









Outline Drawing







 25.4mm Electrical Rotary Joint Slip Ring Smooth Rotation For Medical Machine 0

















Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Single channel fiber optic rotary joint 6.8mm OD stainless steel

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.


Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
