Industrial Slip Ring
>
|
| Place of Origin | China |
| Brand Name | CENO |
| Certification | CE,RoHS,ISO9001,UL |
| Model Number | ECN000-08P2-04S-02R |

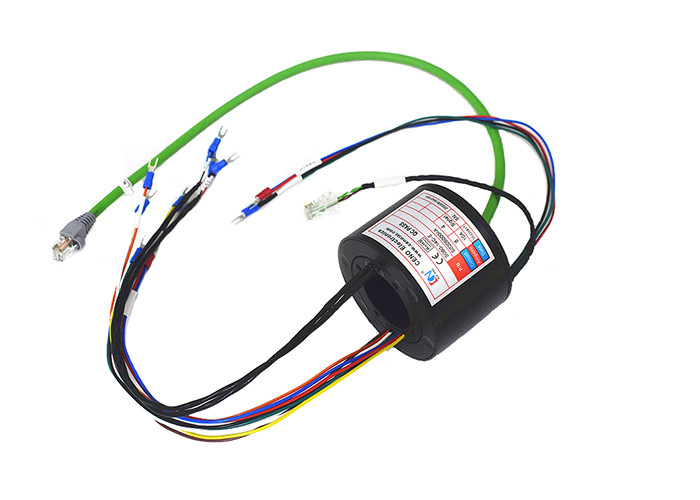

Industry Slip Ring apply to harsh enviroment with low temperature -40°C
ECN000-08P2-04S-02R is an industry slip ring from CENO electronics company, there are 8 circuits for 10A, 4 circuits for signal and with flange installation. The vibration resistance is meet CB/T 2423.10-1995 basic environmental test of electrical and electronic products and CB1146.1.96 ship equipment environmental test and engineering guidelines. Impact resistance is meet GJB150.18-86 military equipment environmental test method. So it’s mainly used on testing equipment, marine machinery, and military equipment.
Features
Applications
Optional
Specification
|
ECN000-08P2-04S-02R |
Specification |
| Current & Circuits | 8 circuits * 10A; 4 circuits * signal |
| Rating Voltage | 440 VAC/VDC |
| Dielectric strength |
≥1000VAC@50Hz (P) ≥ 300VAC@50Hz (S) |
| Isolation resistance |
≥500MQ@300VDC (P) ≥100MQ@300VDC (S) |
| Contact resistance float | ≤10mΩ (on the speed of 50 rpm ) |
| Lead wire size |
AWG14# Tin coated Teflon®UL Two core twisted pair shield wire (0.2mm²) CAT5e |
| Lead wire length |
Rotor end: 270mm; 280mm; 310mm; 320mm; 330mm; 340mm; 350mm Stator end: 350mm; 200mm; 550mm |
| Operating speed | 0~250rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy |
| Working temperature | -40°C~+80°C |
| Working humidity | 90% |
| IP protection grade | IP54 |
| Installation way | Fix rotor side with Flange; fix stator side with flange |
| The vibration resistance |
Meet CB/T 2423.10-1995 basic environmental test of electrical and electronic products. Meet CB1146.1.96 ship equipment environmental test and engineering guidelines. |
| Impact resistance | Meet GJB150.18-86 military equipment environmental test method |
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
