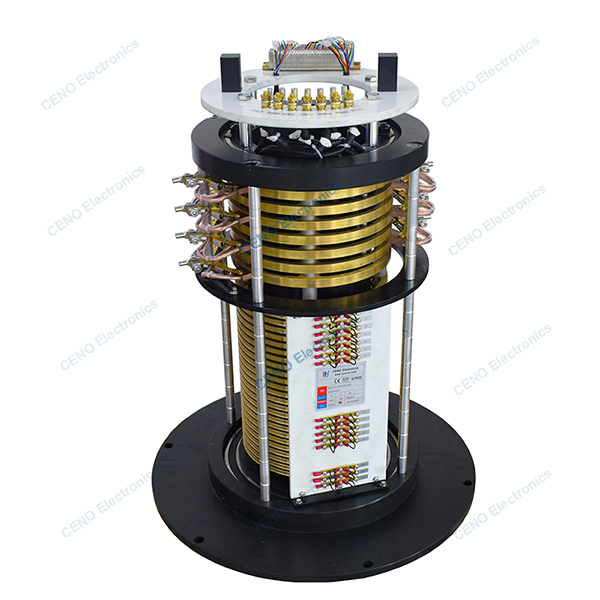

Multi-channels Carbon Brush Slip Ring with Electric Power & Signals for Industry
BHCN-C-200-0763-25S is CENO carbon brush slip ring with 65 circuits electric power & 25 circuits signals for kinds of industrial equipment. CENO carbon brush slip ring represent the union of manufacturing processes and technologies that enable CENO to offer large, high volume slip rings with advanced feature that are cost effective. Capability of adding integral encoder, multiplexer, fiber optic rotary joint and non-contacting data link. For more information please contact us.
Features
- Excellent weather resistance, high electrical safety
- Advanced copper graphite, stable performance, less dust & long life
- Special design & easy maintenance
Applications
- Mining equipment
- Oil well & drilling plat form
- Harbour machinery
- Vessel crane
- Offshore platform crane
Optional
- Circuits, Voltage, Current
- Structure and Shape
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Specification
| BHCN-C-200-0763-25S | Specification |
| Current & Circuits | 6 circuits * 63A; 1 * PE; 25 circuits *Signal |
| Rating Voltage | 0 ~ 380 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance | ≥500MΩ@100VDC; ≥100MΩ@100VDC |
| Contact resistance wave | ≤ 10mΩ |
| Working temperature | -20°C~+60°C |
| Working humidity | 90 %RH |
| IP protection grade | IP00 |
| Operating speed | 0~5rpm |
| Inner diameter | 200mm |
| Contact material | Copper graphite |
| Housing material | Aluminium Alloy |
| Maintenance | On Schedule |
Outline Drawing
More information about ceno marine carbon brush slip rings
CENO Electronics has been designing and manufacturing slip rings for various industries for about 20 years. Our Carbon Brush Slip Ring is specially designed for marine and offshore applications, making sure your equipment runs smoothly and efficiently.
Our Carbon Brush Slip Ring has 7 circuits for 200A (400V), 1 circuit for PE, 6 circuits for 63A (400V), and 40 circuits for 5A signal. This product stands out with its large current capacity, which is perfect for marine and offshore applications. The high-quality materials used in construction ensure that our slip rings can withstand harsh and corrosive environments.
Our Carbon Brush Slip Rings also feature low electrical noise and minimal contact resistance, which can maintain the integrity of your signal transmission and power delivery. With CENO Electronics, you can trust that our slip rings are reliable and efficient, ensuring that your machinery operates safely and efficiently.
In conclusion, CENO Electronics has developed a Carbon Brush Slip Ring that is specifically designed to meet the needs of marine and offshore applications. With its large current capacity, low electrical noise, and high-quality construction materials, it is an excellent choice for any industrial application. Trust CENO Electronics for all your slip ring needs.
Application pictures
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
