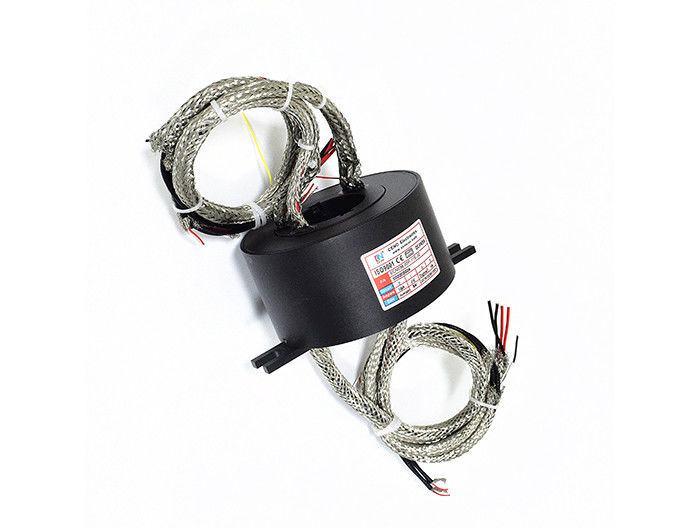

18Amp Hollow Shaft Through Hole Slip Ring 2 Circuit Transmitting Power / Special Signal

18Amp Hollow Shaft Through Hole Slip Ring 2 Circuit Transmitting Power / Special Signal

  • 18Amp Hollow Shaft Through Hole Slip Ring 2 Circuit Transmitting Power / Special Signal
  • 18Amp Hollow Shaft Through Hole Slip Ring 2 Circuit Transmitting Power / Special Signal
  • 18Amp Hollow Shaft Through Hole Slip Ring 2 Circuit Transmitting Power / Special Signal
18Amp Hollow Shaft Through Hole Slip Ring 2 Circuit Transmitting Power / Special Signal
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,UL,ISO9001
Model Number: ECN038-02P-11S-JZ
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/Crate
Delivery Time: Off the shelf
Payment Terms: T/T,Paypal,Western Union
Supply Ability: 5000pcs month
Contact Now
Detailed Product Description
Current: 2*18A;1*PE;4*RS422;5*RS232;3*1A Voltage: 380VAC
Electrical Noise: ≤70mΩ (50rpm) Protection Grade: IP54
Through Bore Size: 38.1mm
High Light:

thermocouple slip ring

,

hollow shaft slip ring

2 Circuit 18Amp Hollow Shaft Slip Ring Transmitting Power And Special Signal





Through hole slip ring has many install ways, the flange mounting is customed by many clients. First align the mounting holes in the flange to mounting base and install flat washers and mounting screws(NOT SUPPLIED).Securely tighten screws,then route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.use 5/16 (Max diameter) screw fix the Anti-rotation tab properly.





Feature

  • Maintenance-free
  • Long life with low wear debris
  • Low electrical noise
  • Flexible installation
  • Support power and signal transmitting
  • Bi-directional 360° rotation



Application

  • Radar antenna
  • Welding robotics
  • Film package machine
  • Crane



Optional

  • Circuit number
  • IP protection grade
  • Lead wire length
  • Signal type





Specification



ECN038-02P-11S-JZ Specification Picture
Current 2*18A;1*PE;4*RS422;5*RS232;3*1A 18Amp Hollow Shaft Through Hole Slip Ring 2 Circuit Transmitting Power / Special Signal 0
Rating voltage 380VAC
Electrical noise ≤70mΩ (50rpm)
Dielectric strength ≥1000V@50Hz
Insulation resistance 300MΩ@100VDC
Working temperature -55℃~+75℃
Protection grade IP54
Working speed 0~100rpm
Contact material Precious metal
Through bore size 38.1mm
Lead wire size AWG17#/26#
Lead wire length 400mm





Outline drawing



18Amp Hollow Shaft Through Hole Slip Ring 2 Circuit Transmitting Power / Special Signal 1





Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.





Certification

ISO9001,CE,RoHS,UL,Explosion-proof



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
