25.4mm 1000M Ethernet Signal Slip Ring Integrate Power

25.4mm 1000M Ethernet Signal Slip Ring Integrate Power

  • 25.4mm 1000M Ethernet Signal Slip Ring Integrate Power
  • 25.4mm 1000M Ethernet Signal Slip Ring Integrate Power
  • 25.4mm 1000M Ethernet Signal Slip Ring Integrate Power
25.4mm 1000M Ethernet Signal Slip Ring Integrate Power
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN025-02P-02P1-01EG
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 2*25A, 2*5A,1*PE1*Gigabit Ethernet Through Bore Size: 25.4 Mm
Protection Grade: IP54 Working Speed: 0~300rpm
Contact Material: Precious Metal Rating Voltage: 0~380VAC
Housing Material: Aluminium Alloy Working Temperature: -20C°~ +60C°
Application: Packaging Machine,Medical Machine
High Light:

1000M Ethernet Signal Slip Ring

,

25.4mm Signal Slip Ring

,

380VAC Signal Slip Ring

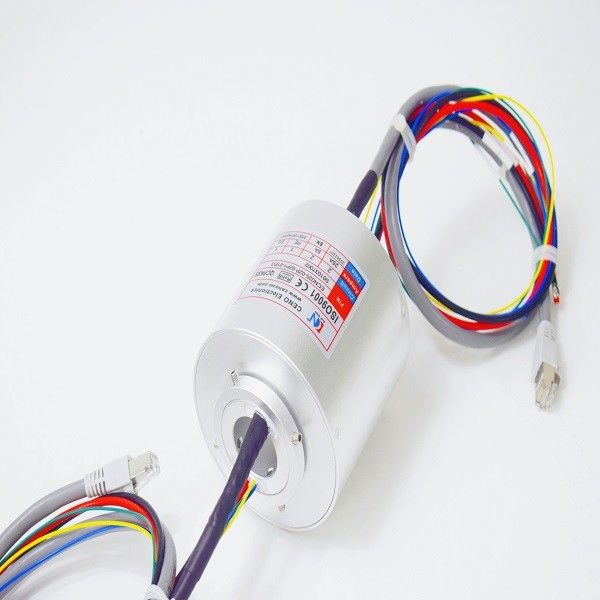

25.4mm 1000M Ethernet Signal Slip Ring Integrate Power



1000M Ethernet signal slip ring integrate power .through bore size is 25.4mm ,for data transmission,used for wind power .





This is a 1000M Ethernet signal slip ring integrate power .through bore size is 25.4mm ,for data transmission over rotary joints we provide a non-contacting Ethernet solution that perfectly meets the demand of high-speed data transmission. That solution supports flexible data rates from 10MBit up to 1 GBit and can be integrated into hybrid rotary joint combinations.The demand for ever more efficient performance on automatic machines makes the use of field buses with ever higher data rates necessary.More requirements please contact with CENO sales@ceno360.com, we will provide the best solutions for you.




Specification



ECN025-02P-02P1-01EG Specification
Circuits 2*25A, 2*5A,1*PE1*Gigabit Ethernet
Voltage 0~380VAC/VDC
Electrical noise ≤30mΩ(50rpm)
Dielectric strength

≥1500V@50Hz(power)

≥500V@50Hz(signal)

Insulation resistance

≥500MΩ@500VDC(power)

≥300MΩ@100VDC(signal)

Operating speed 0-300 rpm
Contact material Precious metal
Housing material Aluminium alloy
IP protection grade IP54
Through hole size 25.4 mm





Features



  • Precious contacts
  • Low torque, low noise
  • Compact design
  • 1000M Ethernet signal
  • Integrate 2 *25A power
  • Long life time
  • Stable performance




Applications



  • Beer machine
  • Canned equipment
  • Oil and drilling platform
  • Food industry
  • CT scan
  • Military industry
  • Robot arms
  • Rotary tables
  • Medical machine
  • Radar system
  • Simulation test equipment
  • Packaging machine
  • Wind power system





Optional



  • Through hole size
  • Various signal integrate
  • Circuits number
  • IP protection grade
  • Cable length






Outline Drawing



25.4mm 1000M Ethernet Signal Slip Ring Integrate Power 0





Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
