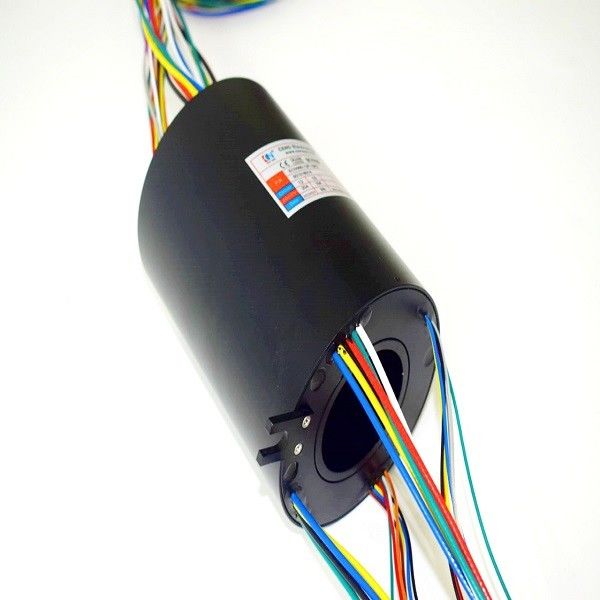

380V 60mm Through Hole Slip Ring 150rpm For Process Control

380V 60mm Through Hole Slip Ring 150rpm For Process Control

  • 380V 60mm Through Hole Slip Ring 150rpm For Process Control
  • 380V 60mm Through Hole Slip Ring 150rpm For Process Control
  • 380V 60mm Through Hole Slip Ring 150rpm For Process Control
380V 60mm Through Hole Slip Ring 150rpm For Process Control
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN060-12P-15P2
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 12*20A,15*10A Through Bore Size: 60 Mm
Protection Grade: IP54 Working Speed: 0~150rpm
Contact Material: Precious Metal Rating Voltage: 0-380VAC/VDC
Housing Material: Aluminium Alloy Application: Rotary Index Tables,Industrial Machinery
High Light:

60mm Through Hole Slip Ring

,

150rpm Through Hole Slip Ring

,

Precious metal high current slip ring

380V 60mm Through Hole Slip Ring 150rpm For Process Control



ID 60mm through hole slip ring used for medical industry with high performance,used for process control equipment.​


CENO has been devoted to providing high-quality solutions and units for various intelligent automation fields. The ECN060-12P-15P2 is an economical through-hole slip ring for current mixed transmission. It’s be able to integrate various of signal such as Gigabit Ethernet, USB2.0 ,SDI, HDMI and common signals at one time.Through hole size can be choose as standard type have 25.4mm,38.1mm,50mm,60mm,70mm.... Max hole size can be 980mm .The waterproof grade can reach up to IP68,please contact with CENO if you have any special requirements ,our professional engineer of R&D team will provide the best solutions.CENO has accumulated abundant experience on design solution of Anti-vibration,anti-shock,corrosion proof,water proof and cross talk prevention. Flexible structure design on integrated slip rings attract more and more market,not only civil industry,but also defense field.Any special requirements please feel free to contact with us ,our email address is sales@ceno360.com ,we will reply as soon as possible .




Specification





ECN060-12P-15P2 Specification
Circuits & Current 12*20A,15*10A
Voltage 0~380VAC
Dielectric strength ≥1000V@50Hz
Insulation resistance ≥500MΩ@500VDC
Operating speed 0-150 rpm
Contact material Precious metal
Housing material Aluminum alloy
Cable length 5000 mm / 3000 mm
IP grade IP54
Inner hole size 60 mm
Working temperature -20°C ~ +60°C






Features



  • Smooth rotation
  • Long lifetime
  • Inner hole size 60mm
  • High performance



Applications



  • Industrial machinery
  • Rotary index tables
  • Process control equipment
  • Wrapping machinery





Optional

  • Through hole size
  • Current & ring numbers
  • Signal type
  • IP protection grade
  • Contacts material




Outline Drawing


 380V 60mm Through Hole Slip Ring 150rpm For Process Control 0







Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Single channel fiber optic rotary joint 6.8mm OD stainless steel

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.


Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
