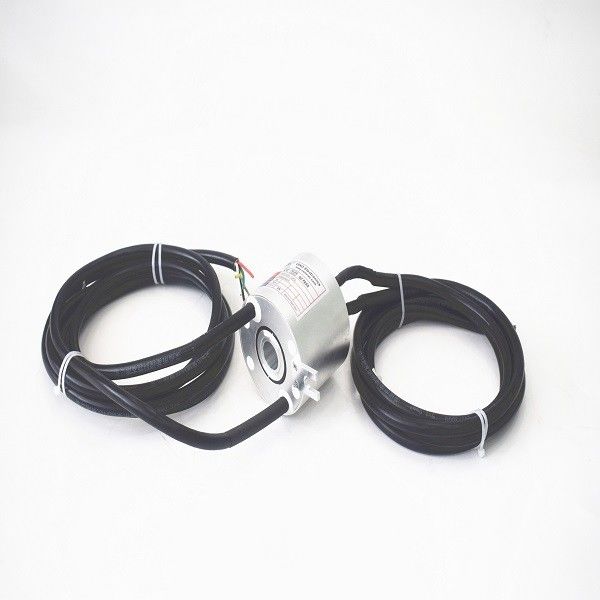

400 Rpm Aluminum Alloy Through Hole Slip Ring With Inner Bore 20mm

400 Rpm Aluminum Alloy Through Hole Slip Ring With Inner Bore 20mm

  • 400 Rpm Aluminum Alloy Through Hole Slip Ring With Inner Bore 20mm
  • 400 Rpm Aluminum Alloy Through Hole Slip Ring With Inner Bore 20mm
400 Rpm Aluminum Alloy Through Hole Slip Ring With Inner Bore 20mm
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN020-10P2
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 10*10A Through Bore Size: 20 Mm
Protection Grade: IP54 Working Speed: 0~400rpm
Contact Material: Precious Metal Rating Voltage: 0~230VAC/VDC
Housing Material: Aluminium Alloy Working Temperature: -20C°~ +60C°
High Light:

Aluminum Alloy Through Hole Slip Ring

,

400 Rpm Through Hole Slip Ring

,

20mm through bore slip ring

400 Rpm Aluminum Alloy Through Hole Slip Ring With Inner Bore 20mm


Long lifetime through bore rotary with inner bore 20mm,working speed 400 rpm,aluminum alloy housing,for revolving door .




CENO's slip ring fully meets the power, control and digital signal mixed transmission of 360 degree unrestricted rotation.Through hole slip ring adopts advanced fiber brush technology, maintenance-free, no lubricating oil.Each channel multi-point contact, low contact pressure and wear, low noise, long service life.Standardized, modular design, complete product specifications, and can be tailored to customer needs of the products.Optional such as current rating, voltage, working speed, working temperature, number of rings, housing material and color, shape size, wire outlets direction, lead wire length, protection grade etc.,Through hole slip ring is widely used in industrial machine processing center, rotating table, heavy equipment tower, cable reel, packaging equipment, process control equipment, emergency lighting equipment, exhibition/display equipment, medical equipment, revolving door, etc.


Specification




ECN020-10P2 Specification
Circuits & Current 10*10A
Voltage 0~230VAC/VDC
Dielectric strength ≥1000V@50Hz
Insulation resistance ≥500MΩ@500VDC
Working temperature -20℃ ~ +60℃
Operating speed 0-400 rpm
Contact material Precious metal
Housing material Aluminum alloy
Cable length 1000mm /1500mm
IP grade IP54
Inner hole size 20 mm







   Features



  • High working speed
  • Inner bore size 20mm
  • Long life service
  • Stable transmission











Applications



  • Display equipment
  • Cable reel
  • Process control equipment
  • Revolving door
  • Oil and gas
  • Heavy equipment








       Optional

  • Through hole size
  • Current & ring numbers
  • Signal type
  • IP protection grade
  • Contacts material



Outline Drawing







 400 Rpm Aluminum Alloy Through Hole Slip Ring With Inner Bore 20mm 0



Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Single channel fiber optic rotary joint 6.8mm OD stainless steel

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.


Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
