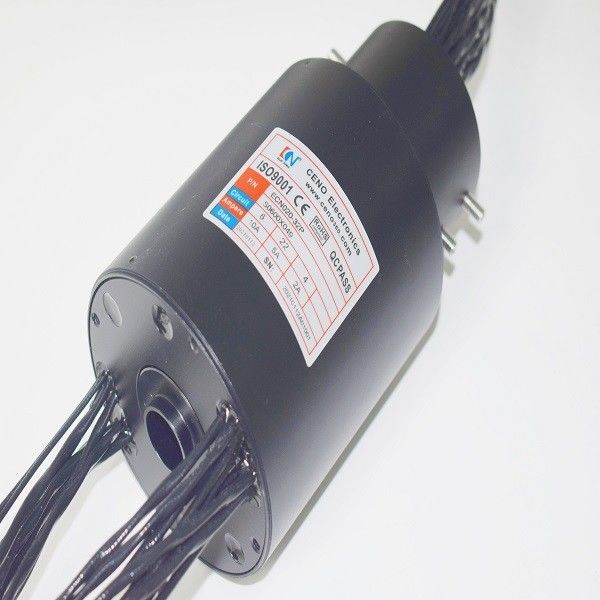

Aluminium alloy 20mm RS485 Through Hole Slip Ring With 32 Rings Power

Aluminium alloy 20mm RS485 Through Hole Slip Ring With 32 Rings Power

  • Aluminium alloy 20mm RS485 Through Hole Slip Ring With 32 Rings Power
  • Aluminium alloy 20mm RS485 Through Hole Slip Ring With 32 Rings Power
Aluminium alloy 20mm RS485 Through Hole Slip Ring With 32 Rings Power
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN020-32P
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 6*10A,22*5A,4*2A Through Bore Size: 20 Mm
Protection Grade: IP54 Working Speed: 0~200 Rpm
Contact Material: Gold To Gold Rating Voltage: 0-410VAC/VDC
Housing Material: Aluminium Alloy Working Temperature: -20C°~ +60C°
Application: Packaging ,industry Equipment
High Light:

RS485 through hole slip ring

,

RS232 through hole slip ring

,

RS485 hollow shaft slip ring

Aluminium alloy 20mm RS485 Through Hole Slip Ring With 32 Rings Power



CENO gold contacts material through hole slip ring with 32 rings power ,aluminium housing,inner size 20mm,for turntable.


This is a 20mm through hole, 32 wires of power slip ring, the whole body use aluminium alloy material, the contact materials is gold to gold ,it’s with high-performance and longer life service.it’s also can integrate various of signal such as Ethernet ,Canbus,RS485/232/422 etc.Typical application have radar system,medical machine ,packaging machine,turntable ,cable reels etc.We are professional on shielding technology, anti-interference for line to line.We not only provide products, but also provide solutions! According to different requirements of customers for electrical, signal, data, gas and liquid rotary connection, as well as different power parameter requirements, we provide the best solution to save your time and cost.



Specification



ECN020-32P Specification
Circuits & Current 6*10A,22*5A,4*2A
Voltage 0-410VAC/VDC
Dielectric strength ≥1000V@50Hz
Insulation resistance ≥500MΩ@500VDC
Operating speed 0-200 rpm
Contact material Gold-gold
Housing material Aluminium alloy
IP protection grade IP54
Through hole size 20 mm
Working temperature -20°C ~ +60°C
Cable length 1700mm / 2200mm



Features



  • Low torque, smooth rotation
  • 360 degree connection
  • Easy to install
  • With gold contacts
  • Stable power performance
  • Shaft-mounted
  • Compact size



Applications

  • Beer machine
  • Radar system
  • Marine applications
  • Display equipment
  • Lithium battery equipment
  • Medical machine
  • Rotary table
  • Cable reels
  • Packaging machine




Optional

  • Through hole size
  • Various signal integrate
  • Circuits number
  • IP protection grade
  • Cable length




Outline Drawing

Aluminium alloy 20mm RS485 Through Hole Slip Ring With 32 Rings Power 0



Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Single channel fiber optic rotary joint 6.8mm OD stainless steel

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.


Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
