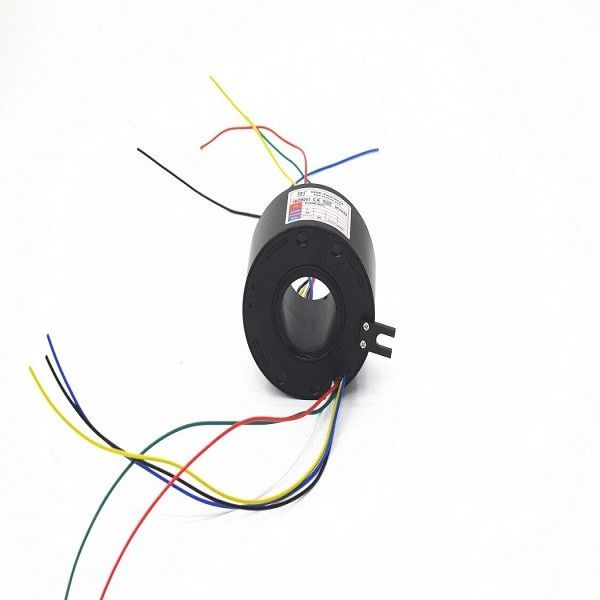

Aluminium Alloy 300rpm 15A 50mm Hollow Shaft Slip Ring

Aluminium Alloy 300rpm 15A 50mm Hollow Shaft Slip Ring

  • Aluminium Alloy 300rpm 15A 50mm Hollow Shaft Slip Ring
Aluminium Alloy 300rpm 15A 50mm Hollow Shaft Slip Ring
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN050-06P3
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Circuits: 6*15A Protection Grade: IP54
Working Speed: 0~300rpm Contact Material: Precious Metal
Rating Voltage: 0~380VAC/VDC Housing Material: Aluminium Alloy
High Light:

50mm hollow shaft slip ring

,

15A hollow shaft slip ring

,

300rpm hollow shaft slip ring

Aluminium Alloy 300rpm 15A 50mm Hollow Shaft Slip Ring



We called through hole slip ring also as hollow shaft slip ring ,CENO can design this type with hole size from 3mm to 5000mm are optional.Various signal such as Ethernet,USB,HDMI,SDI,Canbus profibus and power are capable to be integrated into one slip rings.



Specification

ECN050-06P3
Rings 6*15A
Voltage 0~380VDC
Electrical noise ≤70mΩ(50rpm)
Dielectric strength ≥1000V@50Hz
Insulation resistance ≥500MΩ@500VDC
Operating speed 0-300 rpm
Contact material Precious metal
Housing material Aluminium alloy
IP protection grade IP54
Through hole size 50 mm



Features

  • No package loss,no cross talk,low loss
  • Low friction, long life,low torque, smooth rotation
  • Anti-rotation tab for fixing stator side ,easy to install



Applications

  • Motion simulator
  • Large engineering equipment
  • Automation equipment



Optional

  • Circuit number
  • Current rating
  • Signal type
  • IP protection grade

Aluminium Alloy 300rpm 15A 50mm Hollow Shaft Slip Ring 0



Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
