Aluminium Alloy 30mm Through Hole Slip Ring For Radar System

Aluminium Alloy 30mm Through Hole Slip Ring For Radar System

  • Aluminium Alloy 30mm Through Hole Slip Ring For Radar System
  • Aluminium Alloy 30mm Through Hole Slip Ring For Radar System
Aluminium Alloy 30mm Through Hole Slip Ring For Radar System
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN030-01P2
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 1*10A Through Bore Size: 30 Mm
Protection Grade: IP54 Working Speed: 0~10rpm
Contact Material: Precious Metal Rating Voltage: 0-380VAC/VDC
Housing Material: Aluminium Alloy Working Temperature: -34C°~ +80C°
Application: Airplane ,radar System
High Light:

30mm Through Hole Slip Ring

,

IP54 Through Hole Slip Ring

,

Shaft mounted rotary slip ring

Aluminium Alloy 30mm Through Hole Slip Ring For Radar System

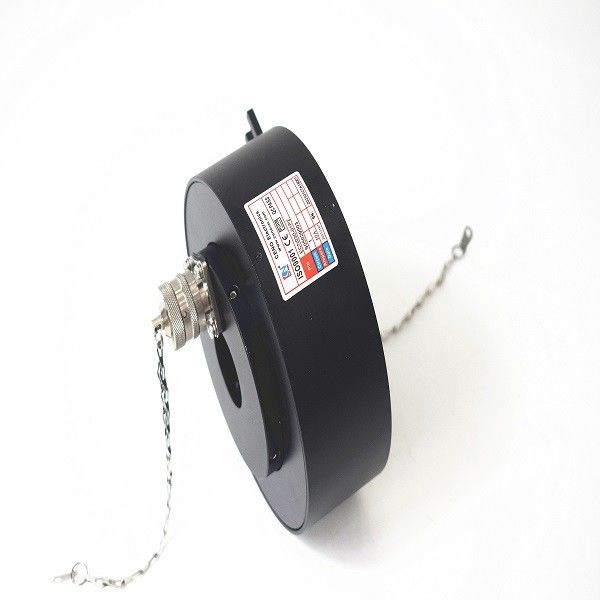

Through hole slip ring with inner bore 30mm ,air plug socket on both sides,used for radar system,aluminium housing .


This through bore slip ring with 10 Amps Circuits,including air plug socket on both sides.This ECN030-01P2 slip ring with through bore size 30 mm, it can combine with power.signal.Ethernet, USB,Control Net.CANBUS. PROFIBUS. It’s normally used for packaging machine,wind power generation,medical machine,food industry.Generally used to transmit electrical currents, signals or data, pneumatic, and hydraulics from a stationary to a rotating platform. Transmission between the stator and rotor units is extremely reliable using sliding contacts. The design is modular and offers maximum flexibility in a wide range of applications.CENO slip rings with compact size, stable electrical and signal performance, low friction and torque, thicker precious metal plate, longer life.Can be apply for automatic machines which require rotating transfer electric/signal/gas/liquid, solve wire winding problems.​



Specification

ECN030-01P2 Specification
Circuits & Current 1*10A
Voltage 0-380VAC/VDC
Dielectric strength ≥1000V@50Hz
Insulation resistance ≥500MΩ@500VDC
Operating speed 0-10 rpm
Contact material Precious metal
Housing material Aluminium alloy
IP protection grade IP54
Through hole size 30 mm
Working temperature -34°C ~ +80°C








Features

  • Air plug socket on both sides
  • Temperature -34 /+80°C
  • Shaft-mounted
  • Inner bore 30mm









Applications

  • Radar system
  • Food industry
  • Industry equipment
  • Packaging machine
  • Wind power
  • Marine applications









Optional

  • Through hole size
  • Current & ring numbers
  • Signal type
  • IP protection grade
  • Contacts material








Outline Drawing


 Aluminium Alloy 30mm Through Hole Slip Ring For Radar System 0







Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Single channel fiber optic rotary joint 6.8mm OD stainless steel

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.


Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
