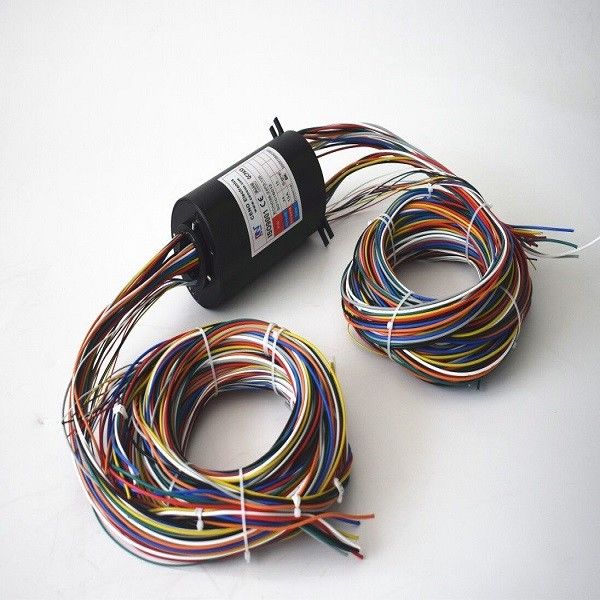

Anti Jamming 150rpm 380VDC 38.1mm Hollow Shaft Slip Ring

Anti Jamming 150rpm 380VDC 38.1mm Hollow Shaft Slip Ring

  • Anti Jamming 150rpm 380VDC 38.1mm Hollow Shaft Slip Ring
  • Anti Jamming 150rpm 380VDC 38.1mm Hollow Shaft Slip Ring
Anti Jamming 150rpm 380VDC 38.1mm Hollow Shaft Slip Ring
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN038-24P3-12S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Circuits: 24*15A,12*signal Protection Grade: IP54
Working Speed: 0-150 Rpm Contact Material: Precious Metal
Rating Voltage: 0~380VAC/VDC Housing Material: Aluminium Alloy
Through Hole Size: 38.1 Mm Electrical Noise: ≤30mΩ(50rpm)
High Light:

38.1mm Hollow Shaft Slip Ring

,

380VDC Hollow Shaft Slip Ring

,

150rpm Hollow Shaft Slip Ring

Anti Jamming 150rpm 380VDC 38.1mm Hollow Shaft Slip Ring



Hollow shaft slip ring with aluminium alloy housing ,inner diameter 38.1 mm



Through hole slip rings is also called as hollow shaft slip rings.CENO's hollow shaft slip ring hole size from 3mm to 5000mm are optional.The product named ECN038-24P3-12S with through bore size 38.1mm.CENO can design this type with hole size from 3mm to 5000mm are optional.Various signal such as Ethernet,USB,HDMI,SDI,Canbus profibus and power are capable to be integrated into one slip rings.



Feature Of Through Hole Slip Ring

Transmit power and signal

The power and signal are mixed transmitted, and the signal categories are as follows:

Ethernet: Rate (10Mbps/100Mbps/1000Mbps)

Industrial Ethernet: EtherNet , EtherCAT ,ProfiNet, Powerlink , SercosIII/IP, etc.

HD video: SDI, LVDS, etc.

Serial communication: RS232, RS485, RS422, etc.

Universal Serial Bus: USB2.0

Industrial Fieldbus: CANBus,ProfiBus, InterBus, CC-Link, DeviceNet, etc.

Sensor signal: thermal resistance, thermocouple, strain gauge, etc.

Long service life, maintenance-free

Easy to install



Specification of ECN038-24P3-12S



Circuits 24*15A,12*signal
Voltage 0~380VAC/VDC
Electrical noise ≤30mΩ(50rpm)
Dielectric strength

≥1000V@50Hz(power)

≥300V@50Hz(signal)

Insulation resistance

≥500MΩ@500VDC(power)

≥100MΩ@100VDC(signal)

Operating speed 0-150 rpm
Contact material Precious metal
Housing material Aluminium alloy sandblasted black oxide
IP protection grade IP54
Through hole size 38.1 mm



Advantages

  • Very low electric noise
  • Anti-jamming ,very low cost
  • Very low contact resistance (Less than 1mΩ)
  • No maintenance and better reliability than traditional sling rings



Applications

  • Medical equipment
  • Wind power equipment
  • Test equipment
  • Display equipment
  • Turntable equipment
  • Amusement equipment
  • High-speed railway equipment
  • Ship offshore equipment
  • Construction machinery



Optional

  • Circuit number
  • Current rating
  • Signal type
  • IP protection grade



Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.



Outline drawing





Anti Jamming 150rpm 380VDC 38.1mm Hollow Shaft Slip Ring 0



Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
