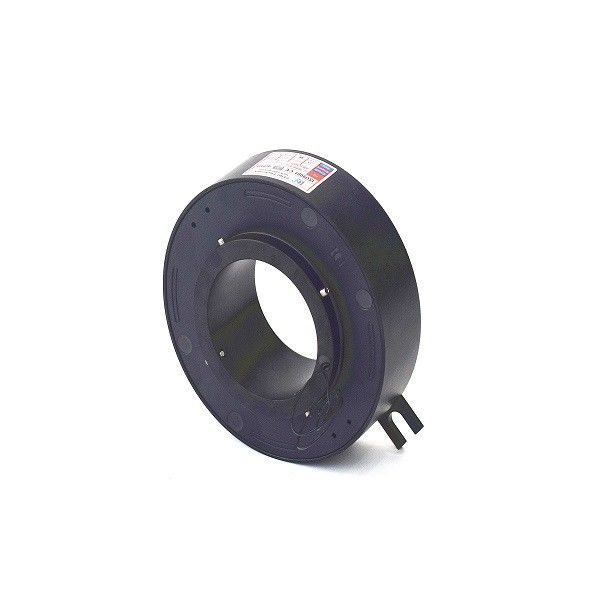

Exhibit Display 100rpm Customized Slip Ring With 66mm Inner Bore

Exhibit Display 100rpm Customized Slip Ring With 66mm Inner Bore

  • Exhibit Display 100rpm Customized Slip Ring With 66mm Inner Bore
  • Exhibit Display 100rpm Customized Slip Ring With 66mm Inner Bore
Exhibit Display 100rpm Customized Slip Ring With 66mm Inner Bore
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN066-01S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 1*1A Through Bore Size: 66 Mm
Protection Grade: IP51 Working Speed: 0~100rpm
Contact Material: Precious Metal Rating Voltage: 0~220VAC/VDC
Housing Material: Aluminium Alloy Working Temperature: 0C°~ +60C°
Housing Length: 37.5mm
High Light:

100 rpm Customized Slip Ring

,

66mm Customized Slip Ring

,

66mm custom slip ring

 Exhibit Display 100rpm Customized Slip Ring With 66mm Inner Bore


Short length through bore slip ring with 66mm inner bore,aluminium housing,working speed 0-100 rpm,used for Exhibit Display






Compact through hole slip ring can be used in any electromechanical system that requires unrestrained. intermittent or continuous rotation while transferring power or data signal.A slip ring is also called a rotary electrical joint, collector, commutator or swivel.The ECN series provides an economical, readily available solution when a compact through bore configuration is required. This unit provides a 66 mm through bore for routing hydraulic or pneumatic lines and a compact 135 mm outside diameter for minimal space applications,total length only 37.5mm .The mainly application such as semiconductor handling systems,process control equipment, heavy equipment turrets and cable reels etc,.CENO also can provide different solutions according to customer’s requirments,please contact us by email sales@ceno360.com.


Specification




ECN066-01S Specification
Circuits & Current 1*1A
Voltage 0~220VAC / VDC
Dielectric strength ≥500V@50Hz
Insulation resistance ≥100MΩ@50VDC
Electrical Noise Max 30 mΩ
Operating speed 0-100 rpm
Contact material Precious metal
Housing material Aluminum alloy
IP grade IP51
Inner bore size 66 mm
Installation way Shaft mounting









   Features

  • Short length
  • Customized ID 66mm
  • Compact structure
  • Stable transmition











Applications

  • Exhibit Display machinery
  • Rotary index tables
  • Process control equipment
  • Turntable equipment










Optional

  • Through hole size
  • Current & ring numbers
  • Signal type
  • IP protection grade
  • Contacts material













Outline Drawing
