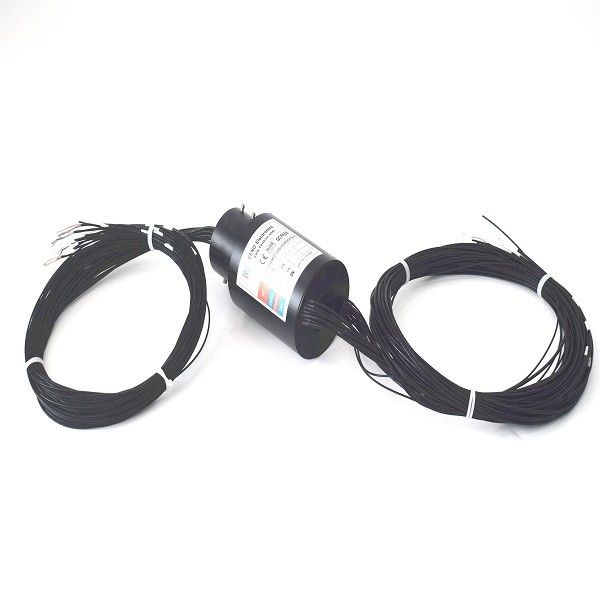

Gold Contacts 50VDC 250 Rpm Custom Slip Ring With Inner Bore 23mm

Gold Contacts 50VDC 250 Rpm Custom Slip Ring With Inner Bore 23mm

  • Gold Contacts 50VDC 250 Rpm Custom Slip Ring With Inner Bore 23mm
  • Gold Contacts 50VDC 250 Rpm Custom Slip Ring With Inner Bore 23mm
Gold Contacts 50VDC 250 Rpm Custom Slip Ring With Inner Bore 23mm
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN023-09P2-23S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 8*10A,23*signal Through Bore Size: 23mm
Protection Grade: IP54 Working Speed: 0~250rpm
Contact Material: Gold To Gold Rating Voltage: 50VDC
Housing Material: Aluminium Alloy Working Temperature: -20C°~ +60C°
Outer Diameter: 99 Mm
High Light:

250 rpm Custom Slip Ring

,

23mm Custom Slip Ring

,

23mm through bore slip rings

 Gold Contacts 50VDC 250 Rpm Custom Slip Ring With Inner Bore 23mm
Customized slip ring with inner bore 23mm,outer diameter 99mm,gold contacts,used for medical machine ,long lifetime.

CENO ECN series through-bore slip rings can be customized according to customer’s demand ,the center hole is available from 0 to 980mm,it’s can pass through the drive shaft, gas-liquid passage, also can integrate high frequency, fiber, encoder, wave guide, gas and liquid and other joints.CENO can meet different request and integrtate many kinds of signals ,different current rating in one slip ring . ECN023-09P2-23S with inner bore size 23mm,outer diameter 99mm.The contact materials is gold to gold ,it’s can make sure the transmission performance more stable and lifetime more longer.Typical application including measurement instruments,packaging machine ,medical equipment etc.Any special request please contact with us,our email address is mkt@ceno360.com.we will provide you with the best solution.





Specification





ECN023-09P2-23S Specification
Circuits & Current8*10A,23*signal
Voltage50VDC
Dielectric strength

≥500V@500Hz (power)

≥100V@300Hz (signal)

Insulation resistance

≥1000MΩ@50VDC (power)

≥300MΩ@50VDC (signal)

Electrical noise≤10mΩ
Operating speed0-250 rpm
Contact materialGold to gold
Housing materialAluminum alloy
IP gradeIP54
Inner hole size23 mm




Features



  • Gold to gold contacts
  • Inner bore 23 mm
  • Long lifetime
  • Stable transmission








Applications





  • Wind turbines
  • Motion simulator
  • Oil well
  • Food industry
  • Medical machine
  • Wrapping machinery





Optional

  • Through hole size
  • Current & ring numbers
  • Signal type
  • IP protection grade
  • Contacts material







Outline Drawing

 Gold Contacts 50VDC 250 Rpm Custom Slip Ring With Inner Bore 23mm 0





Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Single channel fiber optic rotary joint 6.8mm OD stainless steel

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.


Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
