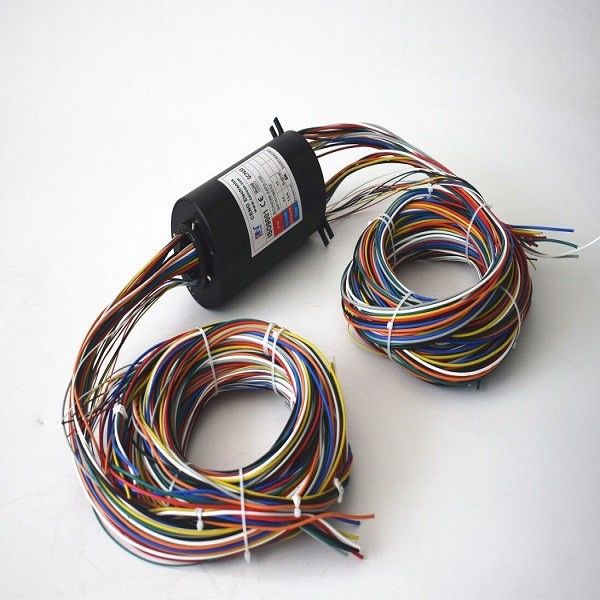

Hollow Shaft 150rpm 15A 38mm Through Bore Slip Ring

Hollow Shaft 150rpm 15A 38mm Through Bore Slip Ring

  • Hollow Shaft 150rpm 15A 38mm Through Bore Slip Ring
Hollow Shaft 150rpm 15A 38mm Through Bore Slip Ring
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN038-24P3-12S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 24*15A,12*signal Through Bore Size: 38.1mm
Protection Grade: IP54 Working Speed: 0~150rpm
Contact Material: Precious Metal Rating Voltage: 0~380VAC/VDC
High Light:

150rpm Through Bore Slip Ring

,

38mm Through Bore Slip Ring

,

15A Hollow Shaft Slip Rings

ECN038-24P3-12S





Through hole slip rings is also called as hollow shaft slip rings.CENO's hollow shaft slip ring hole size from 3mm to
5000mm are optional.The product named ECN038-24P3-12S with through bore size 38mm ,including 24 rings of 15A
power and 12 rings of signal .
This series product could integrate various signal,such as USB,Ethernet ,CANBUS,Encoder,HDMI and etc. Typical
application including Radar system,Marine industrial equipment,Medical equipment.





Specification



Rings 24*15A,12*signal
Voltage 0~380VAC/VDC
Electrical noise ≤30mΩ(50rpm)
Dielectric strength

≥1000V@50Hz(power)

≥300V@50Hz(signal)

Insulation resistance

≥500MΩ@500VDC(power)

≥100MΩ@100VDC(signal)

Operating speed 0-150 rpm
Contact material Precious metal
Housing material Aluminium alloy sandblasted black oxide
IP protection grade IP54
Through hole size 38.1 mm





Features





  • No package loss,no cross talk,low loss
  • Low friction, long life,low torque, smooth rotation
  • Anti-rotation tab for fixing stator side ,easy to install



Applications



  • Radar antenna
  • Motion simulator
  • Military equipment
  • Automation equipment





Optional



  • Through hole size
  • Current rating
  • Signal type
  • IP protection grade



Outline Drawing





Hollow Shaft 150rpm 15A 38mm Through Bore Slip Ring 0









Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
