ID 80 Mm 220VDC Through Hole Slip Ring Rotary Union

ID 80 Mm 220VDC Through Hole Slip Ring Rotary Union

  • ID 80 Mm 220VDC Through Hole Slip Ring Rotary Union
  • ID 80 Mm 220VDC Through Hole Slip Ring Rotary Union
ID 80 Mm 220VDC Through Hole Slip Ring Rotary Union
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN080-36P-20S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 20*10A,4*16A,12*2A,1*PE, 20*Servo Encoder Signal Through Bore Size: 80 Mm
Protection Grade: IP51 Working Speed: 0~100rpm
Contact Material: Precious Metal Rating Voltage: 220VAC
Housing Material: Aluminium Alloy Electrical Noise: ≤30mΩ(50rpm)
Application: Automatic Winding Machine
High Light:

220VDC Through Hole Slip Ring

,

220VDC Through Hole Rotary Union

,

220VDC 80Mm Slip Ring

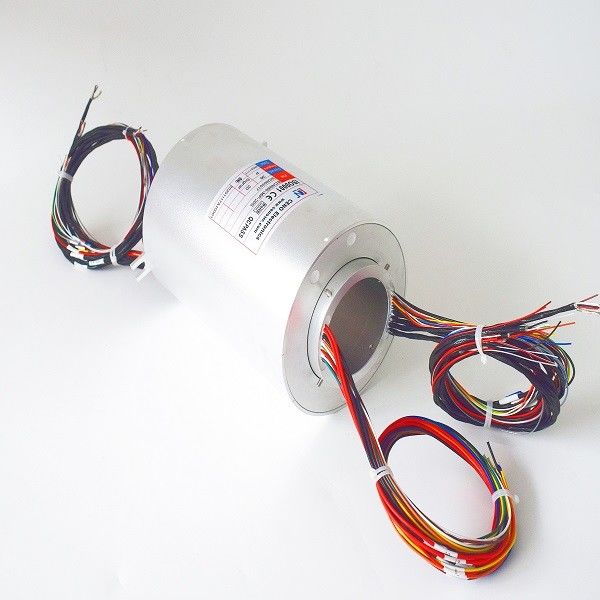

ID 80 Mm 220VDC Through Hole Slip Ring Rotary Union



ID 80 mm through hole slip ring rotary union with 36 rings power and 20 rings Encoder,used for automatic winding machine.

It's a hollow shaft slip ring with inner hole size 80mm with 20 rings of Encoder signal ,it’s also integrate power lines .the inner bore size can be customized.Housing material is aluminium alloy ,working speed 0~100 rpm ,IP protection grade can be optional .CENO servo encoder slip ring specially designed for Panasonic, Mitsubishi, Siemens.It’s with stable performance,compact design, very reliable, years of on-site experience, no alarm, shutdown, etc.This type of slip ring is very popular, mainly used in various servo systems at home and abroad.typical application including automatic winding machine,lithium battery equipment,Industrial automation equipment.




Specification


ECN080-36P-20S Specification
Circuits & Current

20*10A,4*16A,12*2A,1*PE,

20*Servo encoder signal

Voltage 0~220VAC/VDC
Electrical noise Max 30mΩ (50rpm)
Dielectric strength

≥1000V@50Hz (power)

≥300V@50Hz (signal)

Insulation resistance

≥500MΩ@300VDC (power)

≥100MΩ@300VDC (signal)

Operating speed 0-100 rpm
Contact material Precious metal
Housing material Aluminium alloy
IP protection grade IP51
Installation Shaft installation
Through hole size 80mm







Features



  • Power integrate Encoder signal
  • Hollow shaft installation
  • Through bore 80mm
  • Long service life
  • Anti-jamming ,very low cost




Applications



  • Automatic winding machine
  • Display equipment
  • Lithium battery equipment
  • Medical machine
  • Radar system
  • Turntable equipment
  • Amusement equipment



Optional



  • Through hole size
  • Current & ring numbers
  • Signal type
  • IP protection grade
  • Contacts material


Outline Drawing



ID 80 Mm 220VDC Through Hole Slip Ring Rotary Union 0



Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
