Home ProductsThrough Hole Slip Ring

IP51 220VAC 115mm Hollow Shaft Slip Ring For Robot Arms

IP51 220VAC 115mm Hollow Shaft Slip Ring For Robot Arms

  • IP51 220VAC 115mm Hollow Shaft Slip Ring For Robot Arms
  • IP51 220VAC 115mm Hollow Shaft Slip Ring For Robot Arms
IP51 220VAC 115mm Hollow Shaft Slip Ring For Robot Arms
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,UL,ISO9001
Model Number: ECN115-03P3-15S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/Crate
Delivery Time: Off the shelf
Payment Terms: T/T,Paypal,Western Union
Supply Ability: 5000pcs month
Contact Now
Detailed Product Description
Circuits: 3*15A,13*5A,2*6A Hole Size: 115 Mm
Working Temperature: -20°C~+80°C Voltage: 220VAC
Operating Speed: 0~60rpm Contact Material: Precious Metal
Application: Radar Antenna Protection Grade: IP51
High Light:

115mm Hollow Shaft Slip Ring

,

220VAC Hollow Shaft Slip Ring

,

IP51 Hollow Shaft Slip Ring

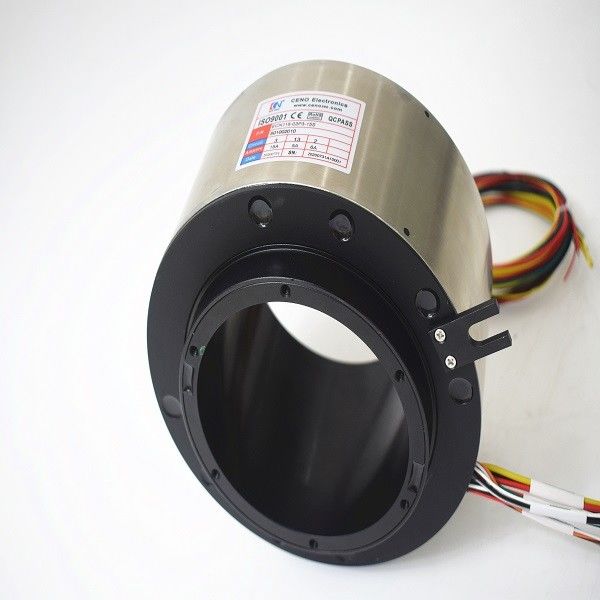

IP51 220VAC 115mm Hollow Shaft Slip Ring For Robot Arms



ID 115mm slip ring,aluminium alloy & stainless steel housing ,for robot arms

This is a Large inner diameter slip ring that with ID 115mm.CENO Electronics hollow shaft slip ring hole size from 3mm to 5000mm are optional.this slip ring including 3 rings of 15A,13 rings of 5A,2 rings of 6A. This series product could integrate various signal,such as USB,Ethernet ,CANBUS,Encoder,HDMI and etc. Typical application including Radar system,Marine industrial equipment,Medical equipment.



Advantages

  • Very low electric noise
  • Anti-jamming ,very low cost
  • Very low contact resistance
  • No maintenance and better reliability than traditional sling ring
  • Flexible installation


Typical application



  • Robot arm
  • Industrial robot
  • Motion simulator
  • Automation equipment
  • Twister machine
  • Radar antenna
  • Welding robotics
  • Bottle filling machine
  • Crane



Optional

  • Circuit number
  • Current rating
  • Protection grade
  • Signal type
  • Through hole size



Specification of ECN115-03P3-15S



Circuits 3*15A,13*5A,2*6A
Voltage 0~220VAC/VDC
Electrical noise ≤30mΩ(50rpm)
Dielectric strength ≥500V@50Hz
Insulation resistance ≥500MΩ@500VDC
Operating speed 0-60 rpm
Contact material Precious metal
Housing material Aluminium alloy & stainless steel
IP protection grade IP51
Through hole size 115 mm



Outline drawing
IP51 220VAC 115mm Hollow Shaft Slip Ring For Robot Arms 0



Our Service



1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.



FAQ



1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.



3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.


Why choose CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in China.



Honor

ISO9001,CE,RoHS,UL,Explosion-proof



Service CENO provides

Solution offerring for 360° rotation system.

Mass and customized production.

24 hours,7days consultant service.



Consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
