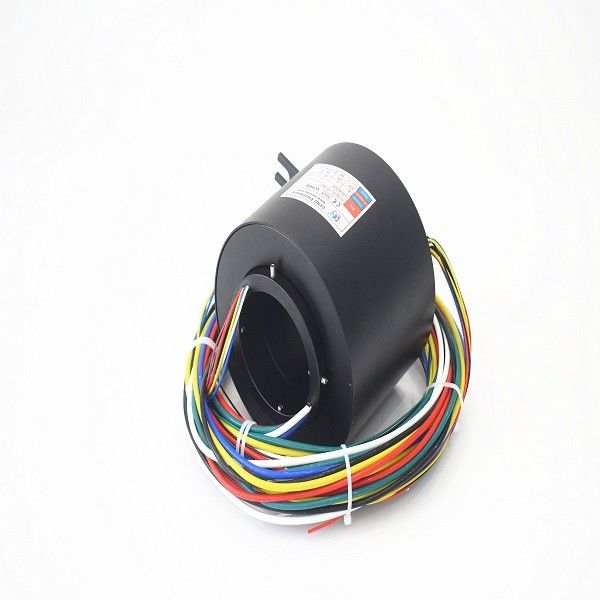

IP51 Through Hole Slip Ring 70mm Inner Bore Hollow Shaft Rotary Union

IP51 Through Hole Slip Ring 70mm Inner Bore Hollow Shaft Rotary Union

  • IP51 Through Hole Slip Ring 70mm Inner Bore Hollow Shaft Rotary Union
  • IP51 Through Hole Slip Ring 70mm Inner Bore Hollow Shaft Rotary Union
IP51 Through Hole Slip Ring 70mm Inner Bore Hollow Shaft Rotary Union
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN070-11P-06S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 6*30A,5*10A,6*2A Through Bore Size: 70 Mm
Protection Grade: IP51 Working Speed: 0~30rpm
Contact Material: Precious Metal Rating Voltage: 48VDC
Housing Material: Aluminium Alloy Working Temperature: -20C°~ +60C°
Outer Diameter: 140 Mm
High Light:

IP51 Through Hole Slip Ring

,

70mm Through Hole Slip Ring

,

70mm Hollow Shaft Rotary Union

IP51 Through Hole Slip Ring 70mm Inner Bore Hollow Shaft Rotary Union



70mm inner bore hollow shaft rotary union with 17 rings for power transmit,precious metal contatcs,used for oil well





ECN070-11P-06S with through bore size 70 mm, it can combine with power.signal.Ethernet, USB, Control Net.CANBUS. PROFIBUS. It could also be mounted by shaft or optional flange mounting.The ECN series electrical slip rings feature a low torque design with precious metal contacts and offer low electrical noise. Includes flexible, color-coded lead wires suitable for transferring analog and digital signals.The main application including packaging machine,radar antennas,military industry,robotics etc.CENO has been engaging in the slip ring industry more than 10 years , and has accumulated abundant experience on R&D. Our engineering team has developed hundreds of special function slip ring for getting a lot of solution for difference industries.If you have any special requirements on slip ring ,just contact with us .



Specification








ECN070-11P-06S Specification
Circuits & Current 6*30A,5*10A,6*2A
Electrical noise Max 30mΩ (50 rpm)
Dielectric strength

≥1000V@50Hz (power)

≥300V@50Hz (signal)

Insulation resistance

≥500MΩ@500VDC (power)

≥100MΩ@100VDC (signal)

Operating speed 0-30 rpm
Contact material Precious metal
Housing material Aluminium alloy
Voltage 0-48 VAC/VDC
IP protection grade IP51
Working temperature -20°C ~ +60°C
Through bore size 70 mm









   Features



  • Through bore size 70mm
  • Shaft mounting
  • Electrical noise Max 30mΩ
  • Long lifetime
  • Low-torque







Applications



  • Medical machine
  • Amusement Equipment
  • Meter and Instrument
  • Wind Turbine Generator
  • Food industry
  • Robotics





       Optional

  • Through hole size
  • Current & ring numbers
  • Signal type
  • IP protection grade
  • Contacts material





Outline Drawing

 IP51 Through Hole Slip Ring 70mm Inner Bore Hollow Shaft Rotary Union 0




Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring

Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Single channel fiber optic rotary joint 6.8mm OD stainless steel

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.


Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
