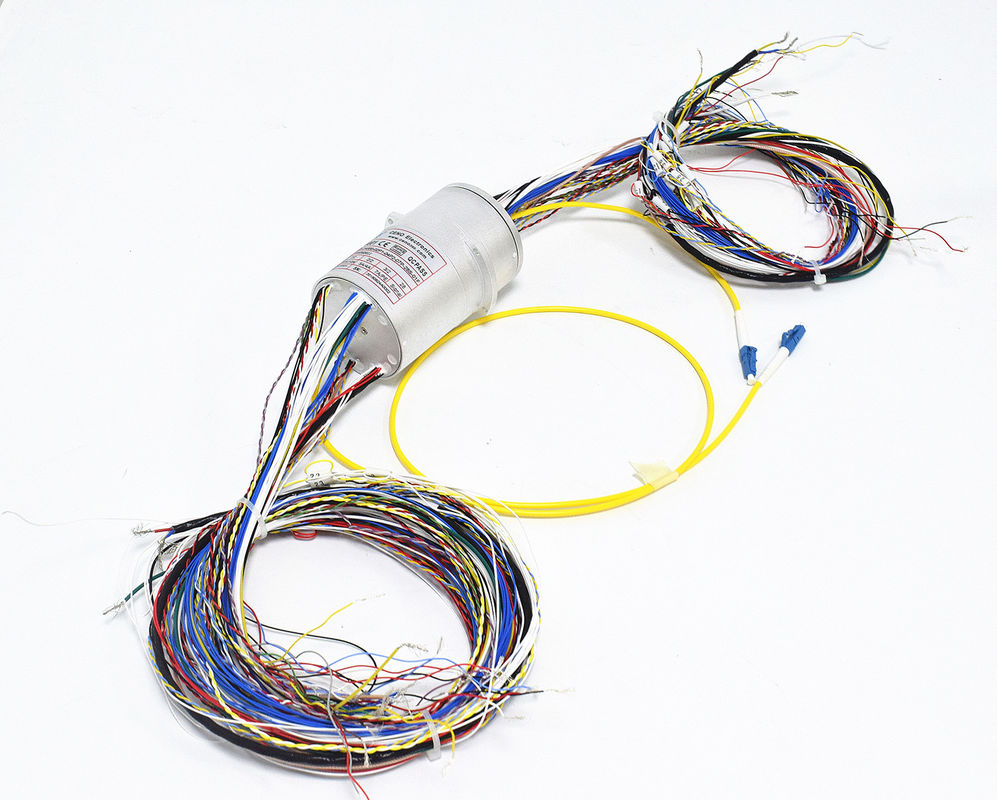

One Channel Transmit Fiber Optic Rotary Joint Power And Video Signal

One Channel Transmit Fiber Optic Rotary Joint Power And Video Signal

  • One Channel Transmit Fiber Optic Rotary Joint Power And Video Signal
  • One Channel Transmit Fiber Optic Rotary Joint Power And Video Signal
  • One Channel Transmit Fiber Optic Rotary Joint Power And Video Signal
  • One Channel Transmit Fiber Optic Rotary Joint Power And Video Signal
One Channel Transmit Fiber Optic Rotary Joint Power And Video Signal
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN000-02P1-04P2-07P-28S-01F
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Cartons/As request
Delivery Time: 1 weeks
Payment Terms: T/T,Paypal, Western Union, L/C
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Working Speed: 0~300rpm Circuit: 2*20A,2*10A,2*5A,2*4A,3*7A,25*signal, 2*land Wire,(2A),1*Video Signal,1*fiber
Fiber Type: SM(9/125um) IP Rating: IP54
Channel: 1 Power: 23dBm
High Light:

slip ring rotary joint electrical connector

,

rotating electrical connector slip ring

One Channel Transmit  Power  And Video Signal  On  Fiber Rotary Joint





Fiber Optical Electric Slip Ring also called Fiber Optic Rotary Joint (FORJ). The FORJ is widely used in radar system,motion simulator,marine industrial equipment,naval vessel system.


We engineer what you need. Our solutions are customized to meet the exact circuits, ratings, and design parameters required for your application.







Characteristic

  • Integrate different size current and signal
  • Integrate Fiber optic rotary joint
  • High/low temperature environment is available



Application

  • Radar Antenna
  • Simulator tester



Option

  • Circuit
  • Fiber type
  • Signal type
  • Installation way









Specification



Parameter
Circuit

2*20A,2*10A,2*5A,2*4A,3*7A,25*signal,

2*land wire,(2A),1*Video signal,1*fiber

Protection grade IP54
Rating voltage 380VAC Working temperature -20°C ~ + 60°C
Resistance insulation

500 MΩ@300VDC(power)

100 MΩ@300VDC(signal)

Rotating speed 0~300rpm
Dielectric strength

≥1000V@50hz(power)

≥300V@50hz(signal)

Contact material Gold to gold
Electric noise ≤ 70 mΩ(50 rpm) Housing material Aluminum alloy oxidation white
Working humidity ≤60%RH Installation way Stator will be fixed axis of equipment by screw
Fiber rotary joint technology data
Fiber type SM(9/125um) Channel 1
Insert lost and changing <2dB(<1dB) Power 23dBm





Outline drawing



One Channel Transmit Fiber Optic Rotary Joint Power And Video Signal 0

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.



One Channel Transmit Fiber Optic Rotary Joint Power And Video Signal 1



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

One Channel Transmit Fiber Optic Rotary Joint Power And Video Signal 3



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
