Precision Conductive Slip Ring Rotary Joint Electrical Connector Applied To Any Devices

Precision Conductive Slip Ring Rotary Joint Electrical Connector Applied To Any Devices

  • Precision Conductive Slip Ring Rotary Joint Electrical Connector Applied To Any Devices
  • Precision Conductive Slip Ring Rotary Joint Electrical Connector Applied To Any Devices
  • Precision Conductive Slip Ring Rotary Joint Electrical Connector Applied To Any Devices
  • Precision Conductive Slip Ring Rotary Joint Electrical Connector Applied To Any Devices
Precision Conductive Slip Ring Rotary Joint Electrical Connector Applied To Any Devices
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,UL,ISO9001
Model Number: ECN025-04P1-25S
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/Crate
Delivery Time: Off the shelf
Payment Terms: T/T,Paypal,Western Union
Supply Ability: 5000pcs month
Contact Now
Detailed Product Description
Current: 4*5A,25*signal Through Bore Size: Ø25.4mm
Working Speed: 0~300rpm Rating Voltage: 380VAC
High Light:

miniature through bore slip ring

,

thermocouple slip ring

Precision Conductive Slip Ring With Through Bore 25.4mm Could Be Applied To Any Devices



CENO through hole slip rings which we named ECN012/ ECN025/ECN038/ECN050 as the beginning for the hole size are 12.7mm/25.4mm/38.1mm/ 50mm ,different size with different model. this modle ECN025-04P1-25S ,it has inner hole 25.4mm with 4 circuit number and 25 channel signal. Support power and signal transmitting at the same time with 360°continuous rotation.





Features


◆Support power and signal transmitting
◆Integrate various signal
◆High reliability,long life,easy to install



Applications
◆Automation equipment
◆Lithium battery equipment



Optional
◆Circuit number
◆Current rating
◆IP protection grade
◆Signal type




Specification

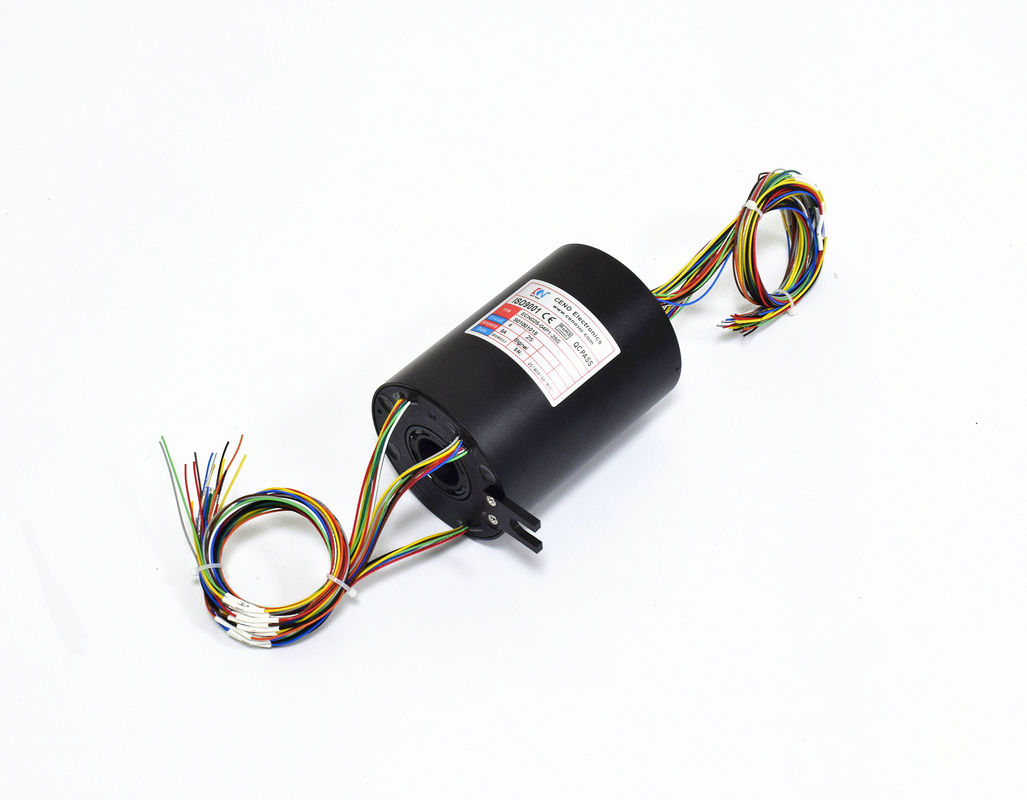

ECN025-04P1-25S         Specification Picture
Current 4*5A,25*signal Precision Conductive Slip Ring Rotary Joint Electrical Connector Applied To Any Devices 0
ID Ø25.4mm
Protection Grade IP54
Working speed 0~300rpm
Contact material Precious metal
Rating Voltage 380VAC
Insulation resistance

500MΩ@300VDC(power)

100MΩ@300VDC(signal)

Dielectric strength

≥500VAC@50Hz(power)

≥300VAC@50Hz(signal)


Outline Drawing



Precision Conductive Slip Ring Rotary Joint Electrical Connector Applied To Any Devices 1





Q: Do you offer hybrid design with electrical channel and fluid or air channel combination?
Yes,CENO air/fluid rotary union and electrical slip ring can be integrated together into one complete solution.The solution can for fluid, power, signal, and data transfer. We offer both standard assemblies and custom solutions to meet your exact requirements. Welcome to consult us with your demands.

Q: How do we mount the hollow shaft slip ring on our machinery?

Hollow shaft mounting way
1) Position the slip ring in the desired location and equally tighten both set screws to the shaft on each end of the union. Torque to 25 lb-in.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.

Flange mounting way
1) Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.





CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Why choose CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in China.



Honor

ISO9001,CE,RoHS,UL,Explosion-proof



Service CENO provides

Solution offerring for 360° rotation system.

Mass and customized production.

24 hours,7days consultant service.



Consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.



Contact Details
CENO Electronics Technology Co.,Ltd

Contact Person: Sales Manager

Tel: +8613632558015

Send your inquiry directly to us
