Two Gigabit Signal Fiber Conductive Slip Ring For HD Video Transmission System

Two Gigabit Signal Fiber Conductive Slip Ring For HD Video Transmission System

  • Two Gigabit Signal Fiber Conductive Slip Ring For HD Video Transmission System
  • Two Gigabit Signal Fiber Conductive Slip Ring For HD Video Transmission System
  • Two Gigabit Signal Fiber Conductive Slip Ring For HD Video Transmission System
  • Two Gigabit Signal Fiber Conductive Slip Ring For HD Video Transmission System
Two Gigabit Signal Fiber Conductive Slip Ring For HD Video Transmission System
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,UL,ISO9001
Model Number: ECN000-02P-20S-02EG-01F
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/Crate
Delivery Time: Off the shelf
Payment Terms: T/T,Paypal,Western Union
Supply Ability: 5000pcs month
Contact Now
Detailed Product Description
Current: 2*30A,20*signal,2*Gbe,1*fiber Rating Voltage: 380VAC
Working Speed: 0~300rpm Fiber Type: SM(9/125um)
Channel: 1 Installation Way: Stator Will Be Fixed Axis Of Equipment By Screw
High Light:

rotary joint electrical connector

,

rotating electrical connector slip ring

Two Gigabit Signal  Of Fiber  Conductive Slip Ring For HD Video Transmission System

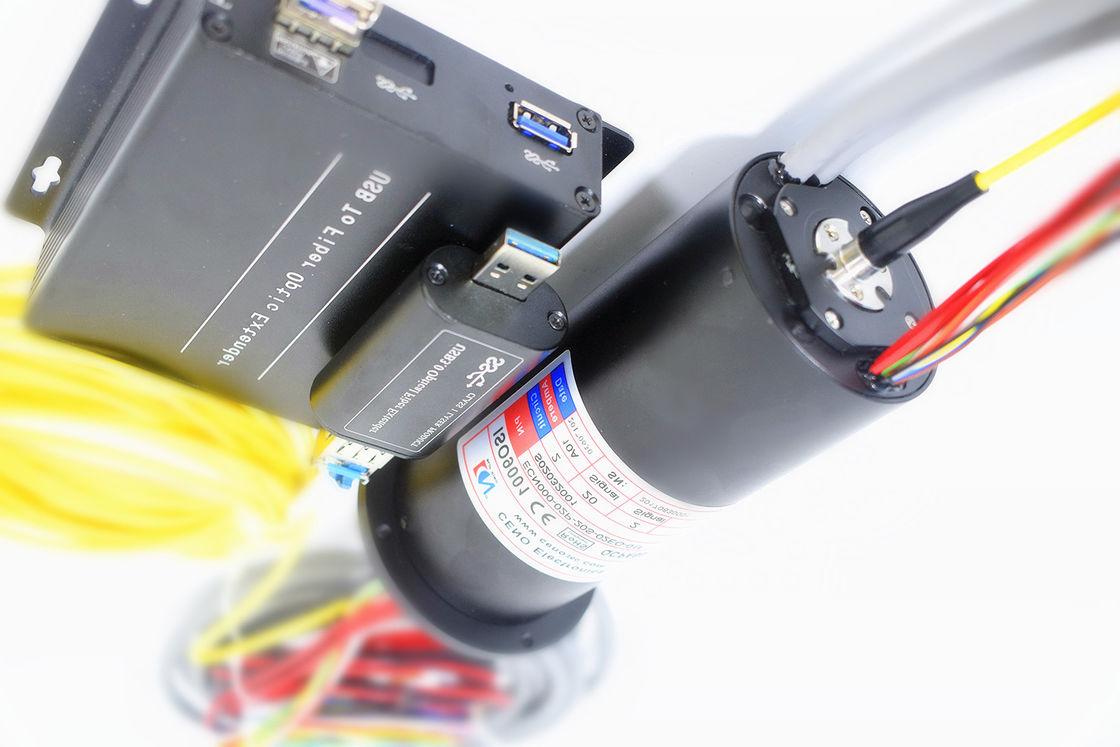

Fiber conductive slip ring specially suitable for some applications which requires to keep continous or intermittent rotating and transmit mass data from static side to rotation side,which can improve mechanical performance, simplify system operation and avoiding damages to fiber when rotating. Can be combined with the traditional electric slip ring to transmit power and high-speed data.





Welcome to visit us via WWW.360.com for more info.






Features

  • Integrate different size current and signal
  • Integrate Fiber optic rotary joint
  • High/low temperature environment is available


Applications

  • Radar Antenna
  • HD video transmission system


Options

  • Circuit
  • Fiber type
  • Signal type
  • Installation way








Specification



Parameter
Circuit 2*30A,20*signal,2*Gbe,1*fiber Protection grade IP54
Rating voltage 380VAC Working temperature -20°C ~ + 60°C
Resistance insulation

500 MΩ@500VDC(power)

100 MΩ@500VDC(signal)

Rotating speed 0~300rpm
Dielectric strength

≥1000V@50hz(power)

≥500V@50hz(signal)

Contact material Precious metal
Electric noise ≤ 70 mΩ(50 rpm) Housing material Aluminum alloy oxidation white
Working humidity ≤60%RH Installation way Stator will be fixed axis of equipment by screw
Fiber rotary joint technology data
Fiber type SM(9/125um) Channel 1
Insert lost and changing <2dB(<1dB) Power 23dBm





Outline Drawing



Two Gigabit Signal Fiber Conductive Slip Ring For HD Video Transmission System 0





Q: Do you offer hybrid design with electrical channel and fluid or air channel combination?
Yes,CENO air/fluid rotary union and electrical slip ring can be integrated together into one complete solution.The solution can for fluid, power, signal, and data transfer. We offer both standard assemblies and custom solutions to meet your exact requirements. Welcome to consult us with your demands.

Q: How do we mount the hollow shaft slip ring on our machinery?

Hollow shaft mounting way
1) Position the slip ring in the desired location and equally tighten both set screws to the shaft on each end of the union. Torque to 25 lb-in.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.

Flange mounting way
1) Align the mounting holes in the flange to mounting base and install flat washers and thread forming screws (NOT SUPPLIED) for plastic. Securely tighten screws.
2) Route the wiring and make the necessary connections. Do not allow the wiring to restrict free rotation of the slip ring.
3) Position a screw or dowel (not supplied) in the anti-rotation tab.





CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Why choose CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in China.



Honor

ISO9001,CE,RoHS,UL,Explosion-proof



Service CENO provides

Solution offerring for 360° rotation system.

Mass and customized production.

24 hours,7days consultant service.



Consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.



Contact Details
CENO Electronics Technology Co.,Ltd

Contact Person: Sales Manager

Tel: +8613632558015

Send your inquiry directly to us
