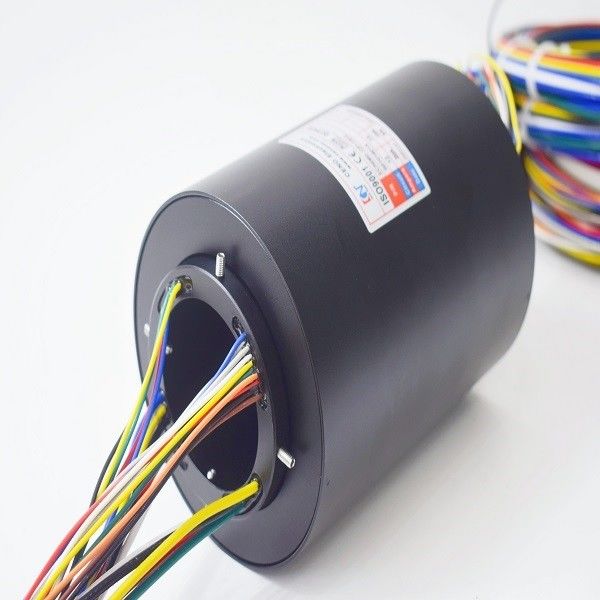

Wrapping Machine 20A Power 60mm Through Bore Rotary Joints

Wrapping Machine 20A Power 60mm Through Bore Rotary Joints

  • Wrapping Machine 20A Power 60mm Through Bore Rotary Joints
  • Wrapping Machine 20A Power 60mm Through Bore Rotary Joints
Wrapping Machine 20A Power 60mm Through Bore Rotary Joints
Product Details:
Place of Origin: China
Brand Name: CENO
Certification: CE,RoHS,ISO9001,UL
Model Number: ECN060-12P-15P2
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton/As request
Delivery Time: 1 week
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Current: 12*20A,15*10A Through Bore Size: 60 Mm
Protection Grade: IP54 Working Speed: 0~150rpm
Contact Material: Precious Metal Rating Voltage: 0~380VAC
Housing Material: Aluminium Alloy Electrical Noise: ≤30mΩ(50rpm)
Application: Food Industry,CT Scan
High Light:

60mm Through Bore Rotary Joints

,

20A Through Bore Rotary Joints

,

20A Wrapping Machine Rotary Joints

Wrapping Machine 20A Power 60mm Through Bore Rotary Joints



Compact structure through bore rotary joints with 60mm inner bore,stable reliable performance with precious contacts.


CENO has been devoted to providing high-quality solutions and units for various intelligent automation fields. The ECN060-12P-15P2 is an economical through-hole slip ring for a variety of signals and current mixed transmission.We can provide you with professional design solutions according to the number of wires, current, voltage, signal type, wire length, installation size, rotation speed, working temperature, protection level, etc. , which need 360 degree rotation for conducting or transmitting various control signals.customized service available.Typical application including ship offshore equipment,canned equipment,oil and drilling platform,wrapping machines.




Specification




ECN060-12P-15P2 Specification
Circuits & Current 12*20A,15*10A
Voltage 0~380VAC
Electrical noise Max 30mΩ (50rpm)
Dielectric strength ≥1000V@50Hz
Insulation resistance 500MΩ@500VDC
Operating speed 0-150 rpm
Contact material Precious metal
Housing material Aluminium housing
IP protection grade IP54
Through hole size 60mm
Working temperature -20C°~ +60C°





Features



  • Hollow shaft installation
  • Through bore 60mm
  • Long service life
  • Anti-jamming ,very low cost
  • Precious contacts
  • Compact structure
  • Stable reliable performance
  • Low torque, low noise




Applications



  • Automatic winding machine
  • Display equipment
  • Lithium battery equipment
  • Medical machine
  • Radar system
  • Turntable equipment
  • Amusement equipment
  • Ship offshore equipment
  • Beer machine
  • Canned equipment
  • Wrapping machines
  • Oil and drilling platform
  • Food industry
  • CT scan





Optional



  • Through hole size
  • Current & ring numbers
  • Signal type
  • IP protection grade
  • Contacts material
  • Cable length




Outline Drawing



Wrapping Machine 20A Power 60mm Through Bore Rotary Joints 0







Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
