    Product Details:

    Place of Origin: China
    Brand Name: CENO
    Certification: CE,RoHS,UL,ISO9001
    Model Number: ECN060-06P1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Carton/Crate
    Delivery Time: Off the shelf
    Payment Terms: T/T,Paypal,Western Union
    Supply Ability: 5000pcs month
    Contact Now
    Detailed Product Description
    Circuit Number: 6 Current Rating: 6*5A
    Voltage Rating: 380VAC Contact Point Material: Precious Metal
    Protection Level: IP54 Rotate Speed: 0~300rpm
    High Light:

    hollow shaft slip ring

    ,

    thermocouple slip ring

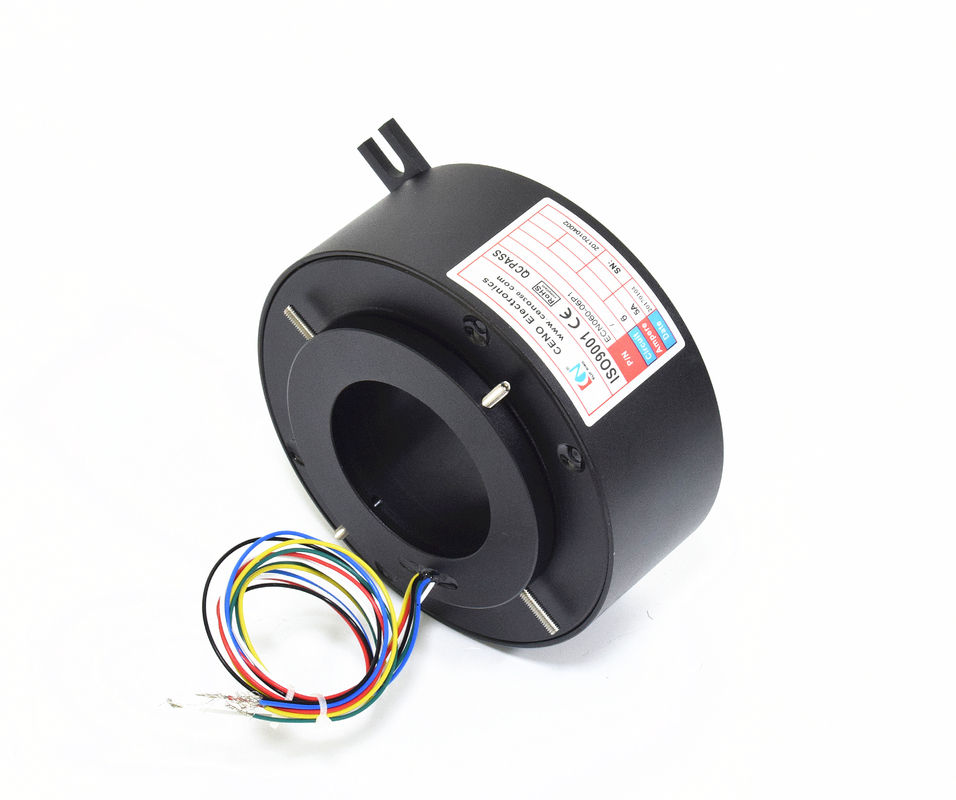

    Maintenance-Free Small Through Bore Slip Ring High Reliability And Low Wear Debris





    Hollow shaft slip ring is one name of though hole slip ring.The unobstructed bore through the center provides routing room for hydraulic,pneumatics or for a main shaft mounting.CENO's through hole slip ring feature bundle fiber brush technology which offers multiple points of contact force per fiber bundle and low contact abrasion rates.In additional to this,the contact brush and rings are not required lubricant to reduce its wear debris.





     Applications

    • Radar antenna
    • Welding robotics
    • Film package machine



    Features

    • Maintenance-free
    • Long life with low wear debris
    • Low electrical noise
    • Flexible installation
    • Support power and signal transmitting



    Specification



    ECN060-06P1            Specification Picture
    Current 6*5A Low Wear Debris Through Hole Slip Ring , Small Slip Ring High Reliability 0
    Working Temperature -20℃~+60℃
    Protection Grade IP54
    Working speed 0~300rpm
    Contact material Precious metal
    Rating Voltage 380VAC
    Lead Wire Size AWG22#
    Through hole size 60mm





    Outline drawing



    Low Wear Debris Through Hole Slip Ring , Small Slip Ring High Reliability 1







    Application shows



    Low Wear Debris Through Hole Slip Ring , Small Slip Ring High Reliability 2





    Why CENO

    CENO is one technology company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    Low Wear Debris Through Hole Slip Ring , Small Slip Ring High Reliability 3



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof



    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



    Service CENO provides

    24/7 consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.





    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
