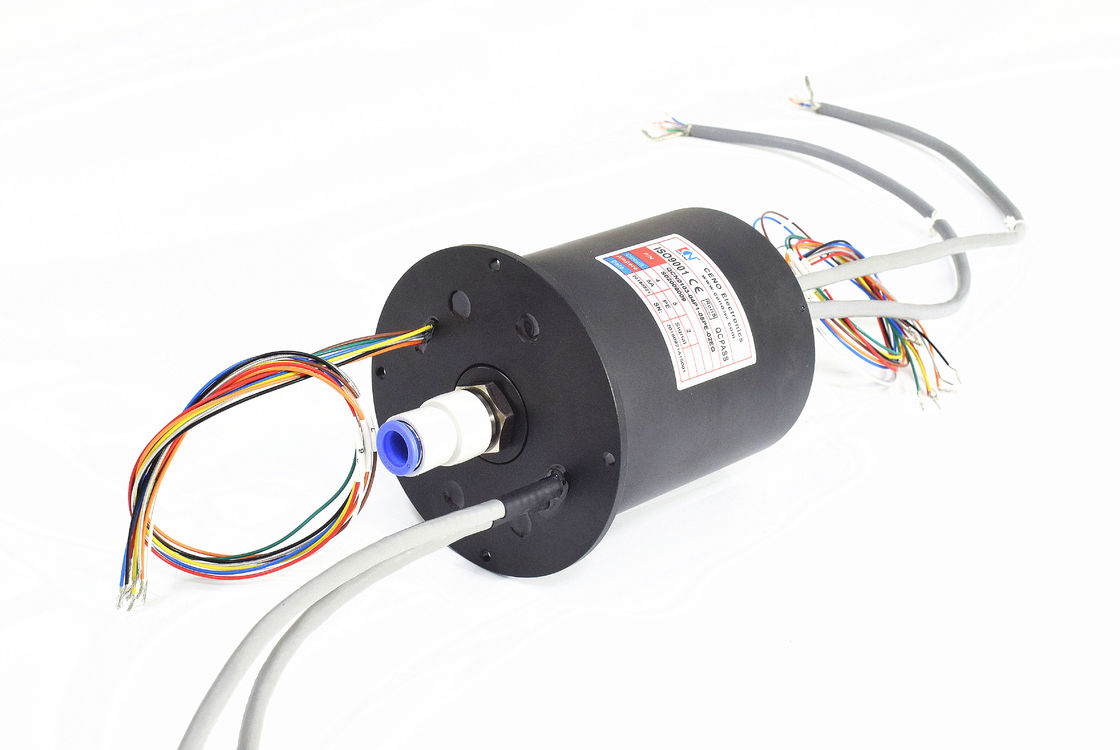

Integrate Current 1 MPa Air Rotary Union Gas Liquid Rotating Joint

Integrate Current 1 MPa Air Rotary Union Gas Liquid Rotating Joint

    • Integrate Current 1 MPa Air Rotary Union Gas Liquid Rotating Joint
    • Integrate Current 1 MPa Air Rotary Union Gas Liquid Rotating Joint
    • Integrate Current 1 MPa Air Rotary Union Gas Liquid Rotating Joint
    • Integrate Current 1 MPa Air Rotary Union Gas Liquid Rotating Joint
  • Integrate Current 1 MPa Air Rotary Union Gas Liquid Rotating Joint

    Product Details:

    Place of Origin: China
    Brand Name: CENO
    Certification: ISO9001,CE,RoHS
    Model Number: QCN0103-04P1-05PE-02EG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Carton
    Delivery Time: 2 weeks
    Payment Terms: T/T,Paypal, Western Union
    Supply Ability: 1000pcs per month
    Contact Now
    Detailed Product Description
    Current: 4*5A; 5*PE ;2 Group * Gigabit Ethernet Cable Circuit Channel: 1 Channel
    Rotating Speed: 0~250rpm Voltage: 380VAC/24VDC
    Pressure: 1MPa Connector Size: G3/8
    High Light:

    high pressure rotary union

    ,

    pneumatic rotary union

     Integrate Current And Gas-Liquid Rotating Joint With 1MPa Air Rotary Union





    CENO air rotary union can pass compress air,nitrogen and so on.Liquid swivel is widely used for transmit water,oil and some chemical liquid media and ect...Both air and liquid rotary union are in rotary union series.It is named as QCN and YCN series.The sealing technology is different based on different media.









    Application



    • Lithium electricity equipment
    • Automatic equipment
    •





    Characters



    • Integrate current and gas-liquid rotating joint
    • Current channel number and rotary joint size could be optional
    • Various type signal could be integrated




    Option



    • Circuit number
    • Gas-liquid rotary joint size
    • Signal Type
    • Installation way







    Specification



    Parameter
    Circuit

    4*5A;5*PE

    2 group * Gigabit Ethernet cable

    Protection Grade IP54
    Voltage 380VAC/24VDC Temperature -20°C~+60°C
    Insulation Resistance

    500MΩ@500VDC(current)

    100MΩ@100VDC(signal)

    Rotating speed 0~250rpm
    Dielectric strength

    ≥1000V@50hz(current)

    ≥300 V@50hz(signal)

    Contact Material precious
    Electrical noise ≤70mΩ(50rpm) Housing material Aluminum alloy oxidation black
    Humidity <60%RH Installation way Frank
    Gas-liquid technical Ref
    Circuit Channel 1 channel Connector Size G3/8
    Max pressure 1MPa Rotating torque <0.5N.m




    Outline drawing



    Integrate Current 1 MPa Air Rotary Union Gas Liquid Rotating Joint 0





    Why with CENO

    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    Integrate Current 1 MPa Air Rotary Union Gas Liquid Rotating Joint 1



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel



    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.





    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
