Place of Origin: | China |
Brand Name: | CENO |
Certification: | CE,RoHS,ISO9001,UL |
Model Number: | ECN-EX-06S |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Carton/As request |
Delivery Time: | 1 week |
Payment Terms: | T/T,Paypal, Western Union |
Supply Ability: | 1000pcs per month |
Current: | 6*2A | Voltage: | 0~24 VAC/VDC |
---|---|---|---|
Dielectric Strength: | ≥300V@50Hz | Housing Material: | SUS316 |
IP Protection Grade: | IP67 | Explosion-proof Grade: | EX ǁ2 /2G EX Ib Mb/Ex Pyb ǁC T6 Gb/Gb |
High Light: | electrical slip ring,large slip ring |

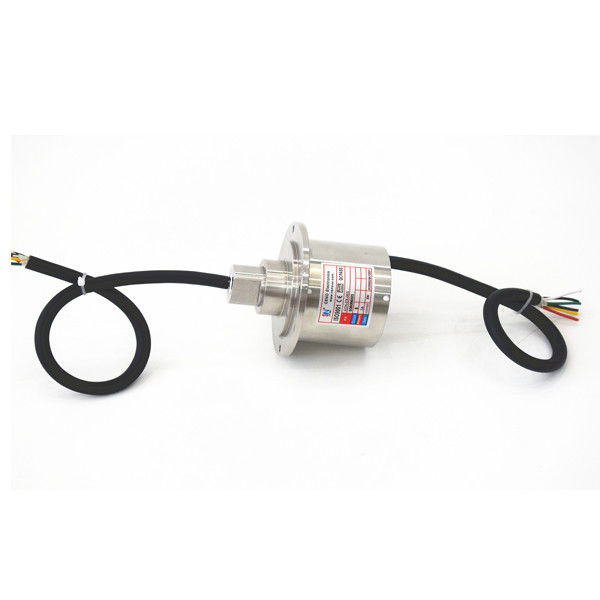

IP67 Explosion Proof Slip Ring Components SUS316 Housing
Explosion-proof electrical slip ring, usually refers to the explosion-proof function, can work under explosive environment,such as oil platform, explosive material packaging equipment, agricultural processing equipment, coal mines, spraying and other dangerous places .CENO combined with years of experience in developing and producing highly reliable slip rings, an explosion-proof type conductive slip ring is developed, which can meet the requirements of explosive gas environment and explosive dust environment at the same time. The protection grade is IP67.
Specification
ECN-EX-06S | |
Current | 6*2A |
Voltage | 0~24 VAC/VDC |
Electrical noise | ≤15mΩ(50rpm) |
Dielectric strength | ≥300V@50Hz |
Insulation resistance | 200MΩ@100VDC |
Operating speed | 0-50 rpm |
Contact material | Gold to gold |
Housing material | SUS316 |
IP protection grade | IP67 |
Explosion-proof grade | EX ǁ2 /2G EX ib mb/Ex pyb ǁC T6 Gb/Gb |
Features
Optional
Applications
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Why with CENO
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
