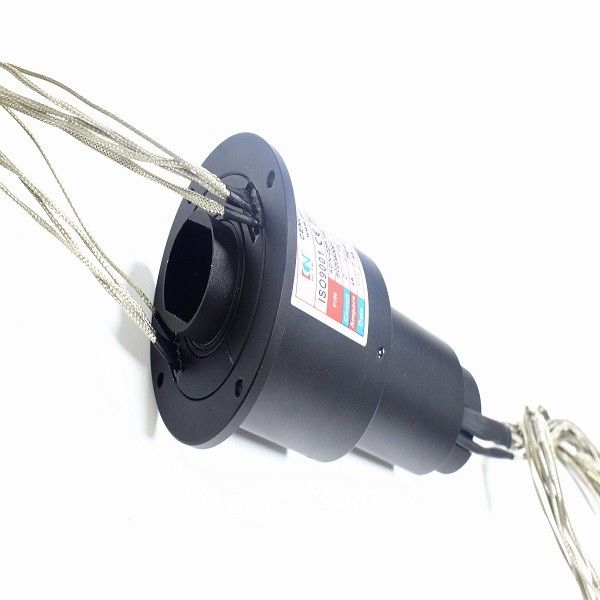

Medical Equipment 500Mm 240VDC 60 Rpm Capsule Slip Ring

Medical Equipment 500Mm 240VDC 60 Rpm Capsule Slip Ring

Capsule slip ring with 2*4A,14*Signal,used for military,medical equipment,0~60 rpm

This is capsule slip ring with compact size ,it is designed for high definition video surveillance or serial communication application.Stable data transmission,no packet loss ,low return loss,low error rate,super high SNR.Ring number are range from 2 rings up to 100 rings.power and signal are easily to be integrated into one slip ring,outstanding signal types including Ethernet,canbus,profibus,RS,HDMI,HD-SDI,USB and so on. Typical outside diameter is 5.5mm,12.4mm,22mm in these series.

Specification

Features

• Compact size, 5.5mm~25mm are available
• Adopt military grade surface treatment,gold to gold contact
• Low contact resistance,low electrical noise,low torque and smooth rotation
• Very low electric noise
• Anti-jamming ,very low cost
• Very low contact resistance (Less than 1mΩ)

Applications

• Radar antenna
• Military equipment
• Mechanical arm
• Medical equipment
• Display equipment
• Turntable equipment
• Amusement equipment
• High-speed railway equipment

Optional

• Signal type
• Circuit number
• Current rating
• Connector type
• IP protection grade

Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.

FAQ

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

Why with CENO


CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
