Robotics Inner Bore 10A 25.4mm Through Hole Slip Ring

Robotics Inner Bore 10A 25.4mm Through Hole Slip Ring

    • Robotics Inner Bore 10A 25.4mm Through Hole Slip Ring
    • Robotics Inner Bore 10A 25.4mm Through Hole Slip Ring
  • Robotics Inner Bore 10A 25.4mm Through Hole Slip Ring

    Product Details:

    Place of Origin: China
    Brand Name: CENO
    Certification: CE,RoHS,ISO9001,UL
    Model Number: ECN025-18P2-16S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Carton/As request
    Delivery Time: 1 week
    Payment Terms: T/T,Paypal, Western Union
    Supply Ability: 500pcs per month
    Contact Now
    Detailed Product Description
    Current: 18*10A,16*signal Through Bore Size: 25.4 Mm
    Protection Grade: IP51 Working Speed: 0~300rpm
    Contact Material: Precious Metal Rating Voltage: 0~380VAC
    Housing Material: Aluminium Alloy Working Temperature: -20C°~ +60C°
    Application: Military Industry,Oil Well
    High Light:

    25.4mm Through Hole Slip Ring

    ,

    25.4mm robotics Slip Ring

    ,

    25.4mm inner bore Slip Ring

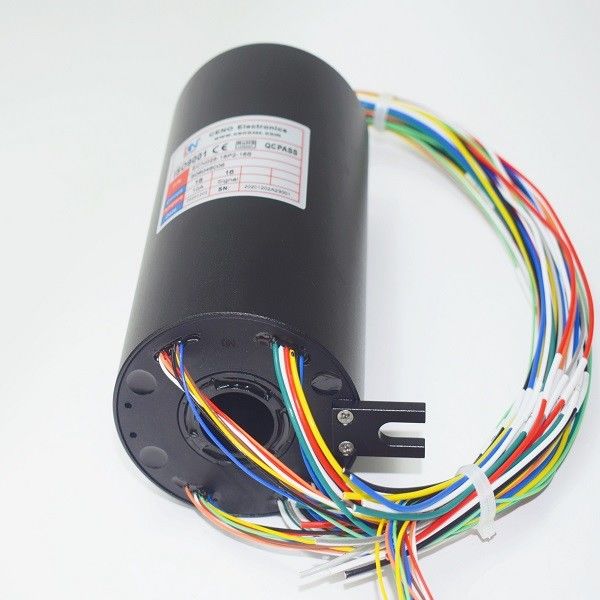

    Robotics Inner Bore 10A 25.4mm Through Hole Slip Ring



    25.4mm inner bore through hole slip ring with 18 rings 10A and 16 rings signal ,precious metal used for robotics



    This is a 25.4mm through hole, 34 wires slip ring, the whole body use aluminium alloy material, more durable than engineering plastic material. Transmission power combine with signal, signal type can be optional, we are professional on shielding technology, anti-interference for line to line. We not only provide products, but also provide solutions! According to different requirements of customers for electrical, signal, data, gas and liquid rotary connection, as well as different power parameter requirements, We can provide you with professional design solutions according to the number of wires, current, voltage, signal type, wire length, installation size, rotation speed, working temperature, protection level, etc.




    Specification




    ECN025-18P2-16S Specification
    Circuits & Current 18*10A,16*signal
    Voltage 0~220VAC
    Electrical noise Max 30mΩ (50rpm)
    Dielectric strength

    ≥1000V@50Hz (power)

    ≥300V@50Hz (signal)

    Insulation resistance

    500MΩ@500VDC (power)

    100MΩ@300VDC (signal)

    Operating speed 0-300 rpm
    Contact material Precious metal
    Housing material Aluminium housing
    IP protection grade IP51
    Through hole size 25.4 mm
    Working temperature -20C°~ +60C°







    Features



    • Through bore 25.4mm
    • Long service life
    • Anti-jamming ,very low cost
    • Precious contacts
    • Compact structure
    • Stable reliable performance
    • Low torque, low noise
    • Power integrate signal
    • Low-maintenance
    • Shaft-mounted




    Applications



    • Ship offshore equipment
    • Beer machine
    • Canned equipment
    • Wrapping machines
    • Oil and drilling platform
    • Food industry
    • CT scan
    • Robot arms
    • Medical machine
    • Military industry
    • Rotary tables





    Optional



    • Through hole size
    • Current & ring numbers
    • Signal type
    • IP protection grade
    • Contacts material
    • Cable length




    Outline Drawing



    Robotics Inner Bore 10A 25.4mm Through Hole Slip Ring 0





    Why with CENO


    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel



    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.





    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
