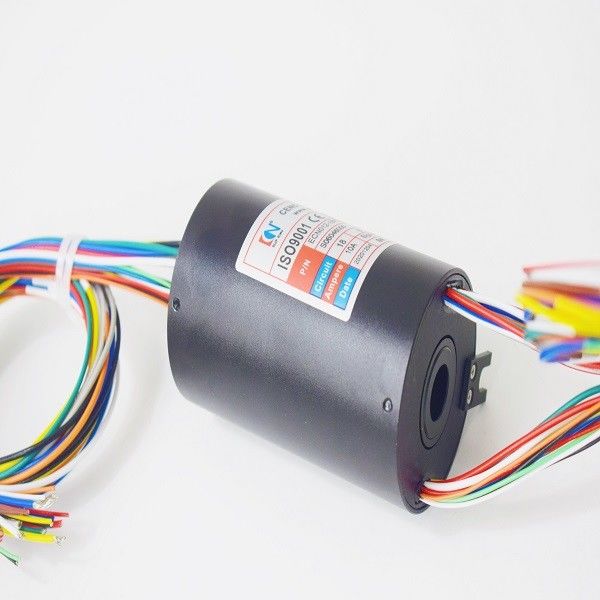

Precious Metal 12.7mm Through Hole Slip Ring For Rotary Tables

Precious Metal 12.7mm Through Hole Slip Ring For Rotary Tables

    • Precious Metal 12.7mm Through Hole Slip Ring For Rotary Tables
    • Precious Metal 12.7mm Through Hole Slip Ring For Rotary Tables
    • Precious Metal 12.7mm Through Hole Slip Ring For Rotary Tables
  • Precious Metal 12.7mm Through Hole Slip Ring For Rotary Tables

    Product Details:

    Place of Origin: China
    Brand Name: CENO
    Certification: CE,RoHS,ISO9001,UL
    Model Number: ECN012-18P2-08S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Carton/As request
    Delivery Time: 1 week
    Payment Terms: T/T,Paypal, Western Union
    Supply Ability: 500pcs per month
    Contact Now
    Detailed Product Description
    Current: 18*10A,8*signal Through Bore Size: 12.7 Mm
    Protection Grade: IP51 Working Speed: 0~300rpm
    Contact Material: Precious Metal Rating Voltage: 0~220VAC
    Housing Material: Aluminium Alloy Working Temperature: -20C°~ +60C°
    Application: Medical Machine,Beer Machine
    High Light:

    12.7mm Through Hole Slip Ring

    ,

    220VAC Through Hole Slip Ring

    ,

    110rpm Through Hole Slip Ring

    Precious Metal 12.7mm Through Hole Slip Ring For Rotary Tables



    12.7 mm through bore rotary joint integrated power & signal,precious metal contacts,Aluminium housing,for rotary tables





    This is a 12.7mm through hole, 26 wires slip ring, the whole body use aluminium alloy material, more durable than engineering plastic material.Transmission power combine with signal, we are professional on shielding technology, anti-interference for line to line.According to different requirements of customers for electrical, signal, data, gas and liquid rotary connection, as well as different power parameter requirements, we provide the best solution to save your time and cost.The typical application have oil and drilling platform,military industry,packaging machine and rotary tables ,etc.



    We not only provide products, but also provide solutions!




    Specification





    ECN012-18P2-08S Specification
    Circuits & Current 18*10A,8*signal
    Voltage 0~220VAC
    Electrical noise Max 30mΩ (50rpm)
    Dielectric strength

    ≥1000V@50Hz (power)

    ≥300V@50Hz (signal)

    Insulation resistance

    500MΩ@500VDC (power)

    100MΩ@300VDC (signal)

    Operating speed 0-300 rpm
    Contact material Precious metal
    Housing material Aluminium housing
    IP protection grade IP51
    Through hole size 12.7 mm
    Working temperature -20C°~ +60C°






    Features



    • Precious contacts
    • Low torque, low noise
    • Power integrate signal
    • Long life span
    • Compact design
    • High-performance
    • 12.7 mm through bore




    Applications



    • Beer machine
    • Canned equipment
    • Oil and drilling platform
    • Food industry
    • CT scan
    • Medical machine
    • Military industry
    • Packaging machine
    • Robot arms
    • Rotary tables





    Optional



    • Through hole size
    • Various signal integrate
    • Circuits number
    • IP protection grade
    • Cable length








    Outline Drawing



    Precious Metal 12.7mm Through Hole Slip Ring For Rotary Tables 0



    Why with CENO


    CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

    10MPa air rotary union 2 channel air 6 circuits 5Amp power integral slip ring



    Certification

    ISO9001,CE,RoHS,UL,Explosion-proof

    Single channel fiber optic rotary joint 6.8mm OD stainless steel



    CENO Advantage

    Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



    Service CENO provides

    24 hours,7days consultant service.

    Mass and customized production.

    Solution offerring for 360° rotation system.





    Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
