| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN025-1815-02EG |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Current: | 18*15A,2*1000M Ethernet | Through Bore Size: | 25.4 Mm |
|---|---|---|---|
| Protection Grade: | IP54 | Working Speed: | 0~300rpm |
| Contact Material: | Precious Metal | Rating Voltage: | 0~380VAC/VDC |
| Housing Material: | Aluminium Alloy | Electrical Noise: | ≤30mΩ(50rpm) |
| Application: | Simulation Test Equipment | ||
| High Light: | Gigabit Ethernet slip ring,300rpm Ethernet slip ring,25.4mm IP54 slip ring |
||

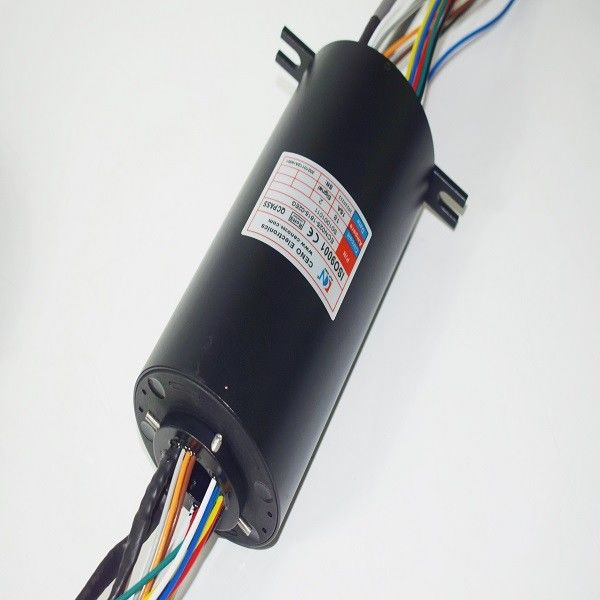

25.4mm Inner Bore 380VDC 300rpm Gigabit Ethernet Slip Ring
Customized Gigabit Ethernet slip ring with 25.4mm inner bore,aluminium housing,used for measurement instruments
The ECN series Ethernet slip ring is a rotating assembly used to transfer power, control circuits or data (analog / digital) from stationary inlets to rotating outlets. It’s provide 100Base-T ,1000Base-T Ethernet connections with a combination of 15 amp power connections. Utilizing high performance precious metal contacts.This series features low electrical noise and Ethernet cables can terminated with RJ45 connector.The through bore can be used to mount the slip ring on a bracket or used for routing hydraulic pneumatic passages as it can integrate pneumatic hydraulic rotary joints, high-frequency rotary joints and fiber optic rotary joints to meet more technical challenges.
Specification
| ECN025-1815-02EG | Specification |
| Circuits & Current | 18*15A,2*1000M Ethernet |
| Voltage | 380VAC |
| Dielectric strength |
≥1000V@50Hz (power) ≥300V@50Hz (signal) |
| Insulation resistance |
≥500MΩ@500VDC (power) ≥100MΩ@500VDC (signal) |
| Operating speed | 0-300 rpm |
| Contact material | Precious metal |
| Housing material | Aluminium alloy |
| IP protection grade | IP54 |
| Through hole size | 25.4 mm |
| Working temperature | -20°C ~ +60°C |
| Cable length | 5000mm / 3000mm |
Features
Applications
Optional
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
