| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN000-30P |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Circuit & Current: | 8*10A; 16*signal | Rating Voltage: | 0~380VAC/VDC |
|---|---|---|---|
| Working Speed: | 0~250rpm | Installation Way: | Rotor End Fixed On Flange |
| Housing Material: | Aluminum Alloy Sandblasting Oxide Black | Working Temperature: | -25~+80℃ |
| High Light: | Industrial Slip Ring 300rpm,Screws Fixed Industrial Slip Ring,alloy Housing Industry Slip Ring |
||

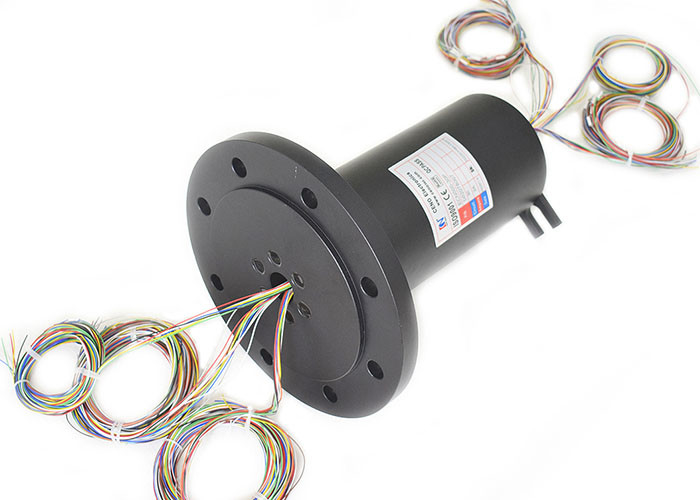

Work Speed 300rpm Industry Slip Rings 30*2A fixed with screws Precious metal
ECN000-30P is an industry slip ring CENO designed for our customer quest. Installation way is Rotor end fixed on the main shaft with screws, rotator lead wire length is 6m, and stator wire length is 3m.
Most of our CENO’s Industry slip rings working speed circuits voltage housing and contact material are optional, the rotation speed can even up to 12000rpm, in this model it’s 300rpm.
This industrial slip ring is used for electrical system equipment,help CENO’s customer increase their productivity. It also used in rotary action requirements machines and equipment, different axis of rotation.
Features
Installation way is fix on main shaft with screws
Precious metal contact material
Multi-channel power signal
Applications
Automation equipment
Processor
Bearing processing equipment
Vehicle Gearing
Optional
Circuit & Current
Voltage rating
Protection grade
Rotation speed
Specification
| ECN000-30P | Specification |
| Circuit & Current | 30*2A |
| Rating voltage | 220VAC/24VDC |
| Dielectric strength | ≥500VAC@50Hz |
| Insulation Resistance | 300MΩ@100VDC |
| Contact Resistance fluctuation | ≤30mΩ (50rpm) |
| Working temperature | -20~+60℃ |
| Working Humidity | ≤60% |
| Working speed | 0~300rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy sandblasting oxide black |
| Installation way | Rotor end fixed on the main shaft with screws. |
| Protection grade | IP54 |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
