| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN000-03P2-03P1-02PE-28S |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Current: | 3*7A, 3*2A, 2*PE, 28*Signals | Rating Voltage: | 400VAC, 24VAC |
|---|---|---|---|
| Working Speed: | 0-20 Rpm | Protection Grade: | IP65 |
| Temperature: | -20°C~+60°C | Electrical Noise: | ≤15mΩ(50rpm) |
| Contact Material: | Precious Metal | Housing Material: | Stainless Steel |
| High Light: | IP65 High protection Slip Ring,20rpm High protection Slip Ring,Low Noise high protection rotary joints |
||

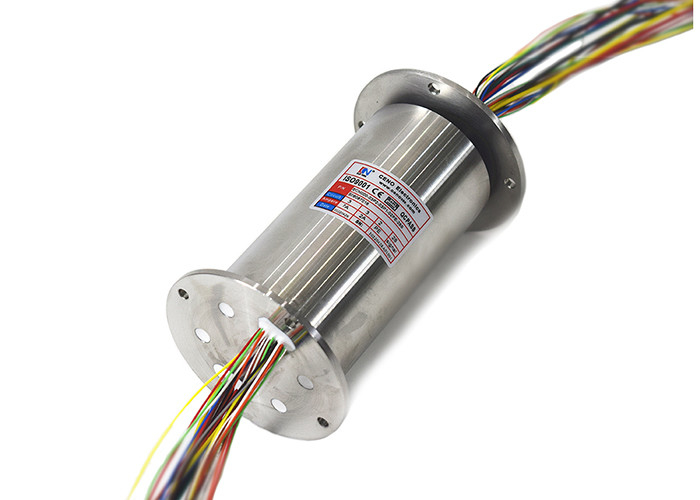

36 Group High protection Slip Ring 20rpm Speed Low Electrical Noise IP65
ECN000-03P2-03P1-02PE-28S is one of high protection rotary joints from CENO electrical company for automation. There are 3circuits of 7Ampere, 3 circuits of 2 Ampere, 28 circuits of signal and 2 circuits of PE, it adopts advanced fiber brush multi point contact, long life, low friction. It can be used on dust prevention and waterproofed to IP65 if the lid of the machine is correctly sealed.The contact material is precious metal and the housing material is stainless steel. Mounting flanges can be designed to suit customer’s needs. And the protection grade, working speed, current rating& circuit number and Signal type are all optional.
Features
• Stable data transmission
• High protection
• The solution can combine hybrid of power, digital signal,fiber optic,gas-liquid
Applications
• Filling machine
• Medical equipment
• Industrial automatic control
Optional
• Signal type
• Circuit number & Current rating
• Working speed
• IP protection grade
Specification
|
ECN000-03P2-03P1-02PE-28S |
|
| Current & Circuits |
3 Circuits*7A; 3 Circuits*2A 2 Circuits*PE; 28 Circuits*signal |
| Rating Voltage | 400VAC;24VAC |
| Dielectric Strength |
≥1000VAC@50Hz (7A ; 2A) ≥500VAC@50Hz (PE ; Signal) |
| Insulation Resistance | ≥300MΩ@ 100VDC |
| Electrical Noise | Max 15mΩ (50rpm) |
| Lead Wire Size | AWG1 7;AWG22#;AWG26#Wire Teflon8 UL |
| Lead Wire Length |
Rotor: 4000mm Stator: 4000mm |
| Working Speed | 0~20rpm |
| Contact Material | Precious Metal |
| Housing Material | Stainless Steel |
| Working Temperature | - 20°C~+60"C |
| Working Humidity | 80%RH |
| Protection(IP Grade) | IP65 |
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
