| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN038-01EG |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Current & Circuits: | 1 Circuits * Gigabit Ethernet | Rating Voltage: | 0~380 VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥500VAC@50Hz | Isolation Resistance: | ≥100MΩ@100VDC |
| Operating Speed: | 0~300rpm | Contact Material: | Precious Metal |
| Housing Material: | Aluminum Alloy | Lead Wire Size: | CAT5e |
| Lead Wire Length: | Rotor:2000mm; Stator:2000mm | Working Temperaturediameter: | -20°C~+60°C |
| Working Humidity: | 60%(20°C) | IP Protection Grade: | IP51 |
| Installation Way: | Stator Side Fixed On The Main Shaft With Screws | Through Hole Size: | Ø38.1mm |
| High Light: | Precious metal Hollow Shaft Slip Ring,Gigabit Ethernet Hollow Shaft Slip Ring,1 Channel Ethernet Slip Ring |
||

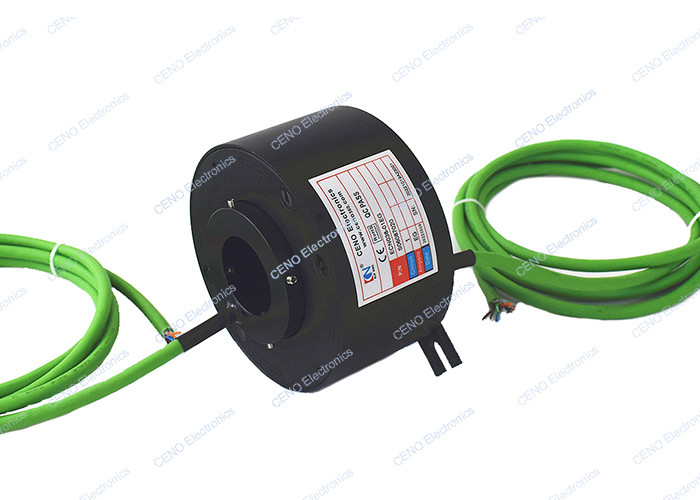

Through hole hollow shaft 1 channel Gigabit Ethernet signal slip ring
ECN038-01EG is a external diameter Ø38.1mm through hole gigabit Ethernet slip ring from CENO Electronics, It can combine the power, data and signals with interference in one rotary systems if customer have demands for special applications. Ethernet technology is the most commonly used network technology, according to the signal protocol characteristics of 100M Megabit and Gigabit Ethernet, CENO electronics developed a slip ring for 100M and gigabit Ethernet based on market demand. Usually used on automatic equipment, filling machine, wire-drawing machine and communication system.
Features
Applications
Optional
Specification
|
ECN038-01EG |
Specification |
| Current & Circuits | 1 circuits * Gigabit Ethernet |
| Rating Voltage | 0~380 VAC/VDC |
| Dielectric strength | ≥500VAC@50Hz |
| Isolation resistance | ≥100MΩ@100VDC |
| Electrical noise | ≤30mΩ (50rpm) |
| Operating speed | 0~300rpm |
| Contact material | Precious metals |
| Housing material | Aluminum alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | Max60% |
| IP protection grade | IP51 |
| Through hole size | Ø38.1mm |
| Lead wire size | CAT5e |
| Lead wire length |
Rotor : 2000mm Stator : 2000mm |
| Installation way | Stator side fixed on the main shaft with screws |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
