| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,UL,ISO9001 |
| Model Number: | ACN25J-04P1-44S |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | Off the shelf |
| Payment Terms: | T/T,Paypal,Western Union, L/C |
| Supply Ability: | 10000pcs month |
| Circuit Number & Current: | 4circuits*5A, 44channel*Signal(24*Encoder) | Voltage: | 0~240VAC |
|---|---|---|---|
| Protection Grade: | IP40 | Operating Humidity: | 60%RH |
| Working Speed: | 0~300rpm | Working Temperature: | -20℃~+60℃ |
| Contact & Housing Material: | Precious Metals | Housing Material: | Engineering Plastic |
| Dielectric Strength: | ≥100MQ@500VDC; ≥10MQ@100VDC | Isolation Resistance: | ≥200MQ@200VDC |
| Electrical Noise: | ≤35mΩ (50rpm) | Lead Wire Length: | Stator : 3000mm±5mm Rotor : 1000mm±5mm |
| High Light: | Compact Industrial Slip Ring,Capsule Encoder Industrial Slip Ring,High Accuracy Capsule Slip Ring |
||

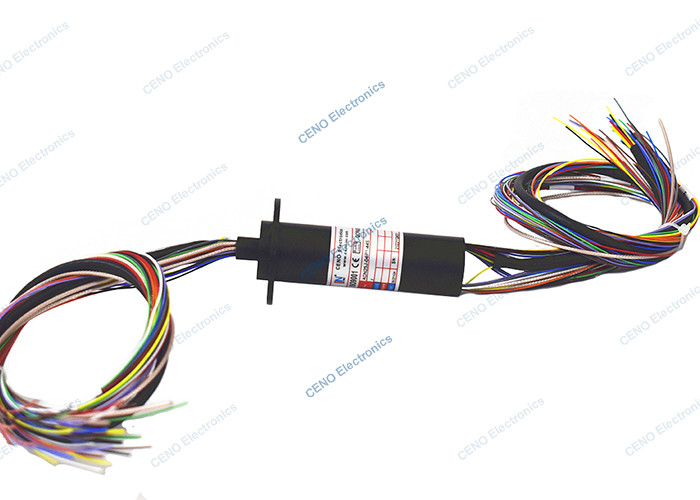

Compact High design accuracy Capsule Encoder Signal Slip Ring for Industry
ACN25J-04P1-44S is an integrated capsule slip ring combined 4circuits for 5A electric power, 44 channels for signal which including 24 channels for Encoder signal from CENO Electronics. The surface treatment of CENO capsule slip ring adopt domestic leading military technology and with high design accuracy, due to the small compact structure it’s especial suit for the small rotation system to transmit weakness control signals. Usually apply to the Medical equipment, Instrument and apparatus, serial communication or motion simulator.
Features
Compact size low torque minimizes system torque budge
High band with transfer capability and integrate a variety of signals
Applications
Automatic machine
Process control system
Measuring instrument
Video monitoring system
Optional
Circuit number & Current
Working speed
Protection grade
Capsule size
Specification
|
ACN25J-04P1-44S |
Specification |
| Current & Circuits | 4circuits*5A, 44channel*Signal(24*Encoder) |
| Rating Voltage | 0~240VAC/VDC |
| Dielectric strength | ≥500VAC@50Hz; ≥100VAC@50Hz |
| Isolation resistance | ≥100MQ@500VDC; ≥10MQ@100VDC |
| Electrical noise | ≤35mΩ (50rpm) |
| Lead wire size | RG178 / AWG22# / AWG28# |
| Working temperature | -20°C~+60°C |
| Working humidity | 60% |
| Operating speed | 0~300 rpm |
| Contact material | Precious metal |
| Housing material | Engineering plastic |
| Lead wire length |
Stator : 3000mm±5mm Rotor : 1000mm±5mm |
| IP protection grade | IP40 |
Outline drawing
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
