| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN000-04P2-10S |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 1000pcs per month |
| Current: | 4*10A, 1*10A(PE), 10*2A(Encoder) | Rating Voltage: | 380VAC |
|---|---|---|---|
| Working Speed: | 0~100rpm | Protection Grade: | IP54 |
| Temperature: | -20°C~+60°C | Working Humidity: | 60% |
| Dielectric Strength: | ≥1000VAC@50Hz; ≥300VAC@50Hz | Isolation Resistance: | ≥1000MQ@500VDC; ≥100MQ@300VDC |
| Electrical Noise: | ≤70mΩ (50rpm) | Lead Wire Length: | Rotor : 300mm Stator : 300mm |
| Lead Wire Size: | AWG17# Tin Coated Teflon®UL 10 Core Twisted Shield Wire | Installation Way: | Bolt Fixed On The Rotation Equipment |
| High Light: | 100rpm Integrated Slip Ring,380VAC Integrated Slip Ring,Encoder Signal Industrial Slip Ring |
||

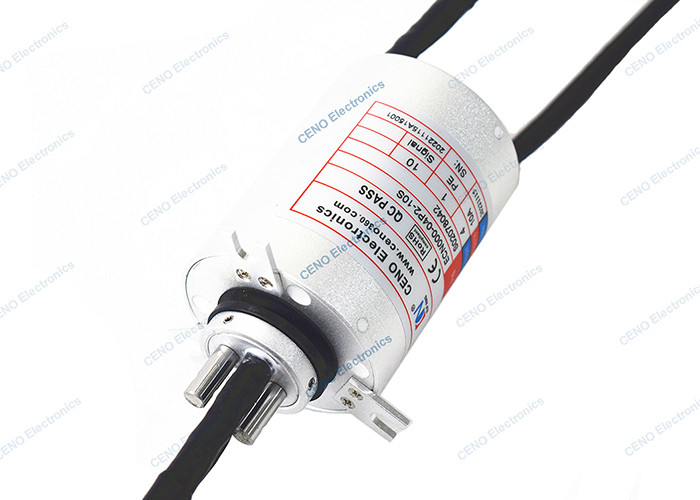

Integrated Slip Ring With Encoder Signal And Electric Power For Industry
ECN000-04P2-10S is an integrated slip ring with Encoder from CENO electronics, there are 4 circuits for 10A electric power, 10 channels for 2A Encoder signals. And most of the specification can be customized and optional as different applications. Encoder is a device that complies and converts signals or data into signals that can be communicated, transmitted and stored. Due to the scientific and reasonable structure, convenient on-sit maintenance and commissioning, and stable performance, it’s wildly used in engineering machinery, ship cranes etc.
Features
Applications
Optional
Specification
|
ECN000-04P2-10S |
Specification |
| Current & Circuits | 4circuits*10A, 1*10A(PE), 10circuits*2A(Encoder) |
| Rating Voltage | 0~380 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance | ≥1000MQ@500VDC; ≥100MQ@300VDC; |
| Electrical noise | ≤70mΩ (50rpm) |
| Lead wire length |
Rotor : 300mm Stator : 300mm |
| Operating speed | 0~100rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy |
| Working temperature | -20°C~+80°C |
| Working humidity | 60% |
| IP protection grade | IP54 |
| Lead wire size |
AWG17# Tin coated Teflon®UL 10 core twisted shield wire |
| Installation way | Bolt fixed on the rotation equipment |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
