| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN038-0315-0905-EM |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Current & Circuits: | 3*15A; 9*5A; 5*100M Ethernet | Rating Voltage: | 0~380 VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥1000VAC@50Hz | Isolation Resistance: | ≥500MΩ@500VDC |
| Electrical Noise: | ≤70mΩ (50rpm) | Contact Material: | Precious Metal |
| Using Material: | Aluminum Alloy | Lead Wire Length: | Rotor : 1000mm Stator : 10000mm |
| Working Temperaturediameter: | -20°C~+60°C | Working Humidity: | 60% |
| IP Protection Grade: | IP54 | Operating Speed: | 0~300rpm |
| High Light: | 380 VAC Through Hole Slip Ring,Aluminum Housing Through Hole Slip Ring,100M Megabit Ethernet Slip Ring |
||

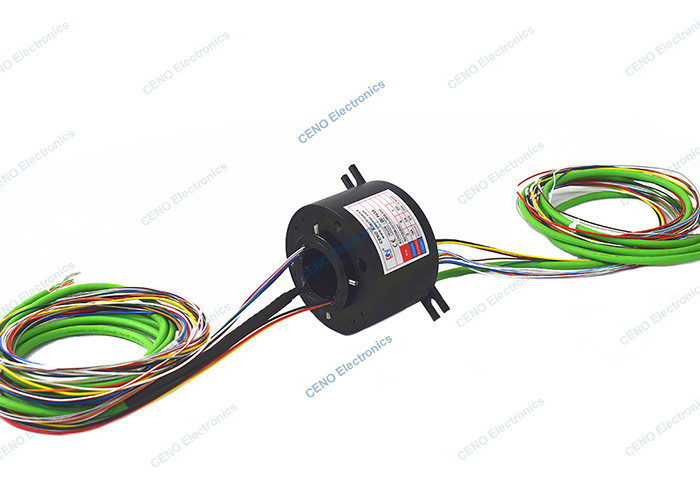

100M Megabit Ethernet Through Hole Slip Ring for Industry Application
ECN038-0315-0905-EM is an Ethernet slip ring with through hole size Ø38.1mm from CENO Electronics, there are 3 circuits for 15A, 9 circuits for 5A and 5 group for 100M Ethernet signal. Ethernet hybrid slip rings run power, signal, Ethernet from stationary structures to rotating platforms through copper or gold channels. Due to it’s high optional parts, stable transmission, non string code and small loss, it’s mainly apply to turntable test equipment, automatic equipment, wire-drawing machinery and communication systems.
Features
Applications
Optional
Specification
|
ECN038-0315-0905-EM |
Specification |
| Current & Circuits | 3circuits*15A, 9circuits*5A, 5 circuits*100M Ethernet |
| Rating Voltage | 0~380VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Electrical noise | ≤70mΩ (50rpm) |
| Operating speed | 0~300rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60% |
| IP protection grade | IP54 |
| Through hole size | Ø38.1mm |
| Lead wire size |
AWG14# Tin coated Teflon®UL AWG22# Tin coated Teflon®UL Cat5e net wire |
| Lead wire length |
Rotor : 1000mm Stator : 1000mm |
| Installation | Fix up rotor side on the shaft with screws |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
