| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN012-12S-GS |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons/As request |
| Delivery Time: | 1 weeks |
| Payment Terms: | T/T,Paypal, Western Union, L/C |
| Supply Ability: | 1000pcs per month |
| Current & Circuits: | 12 Circuits * 1A | Rating Voltage: | 380 VAC |
|---|---|---|---|
| Dielectric Strength: | ≥1000VAC@50Hz | Isolation Resistance: | ≥500MΩ@500VDC |
| Electrical Noise: | Max 30mΩ | Operating Speed: | 0~3000rpm |
| Contact Material: | Precious Metal | Housing Material: | Aluminum Alloy |
| Working Temperature: | -20°C~+60°C | Working Humidity: | 60% |
| IP Protection Grade: | IP51 | Lead Wire Size: | AW24# Tin Coated Teflon® UL |
| Lead Wire Length: | Rotor : 300 Mm Stator : 300 Mm | External Diameter: | Ø12.5mm |
| Installation: | Fix Rotor Side On Guest Shaft With Screws | ||
| High Light: | 3000rpm High Speed Slip Ring,380 VAC High Speed Slip Ring,High Speed Industrial Slip Ring UL |
||

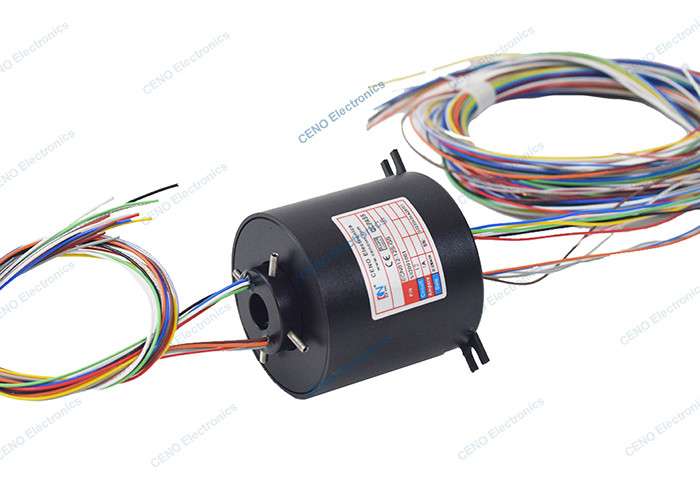

High Speed Slip Ring with Through Hole & 3000rpm For Industrial Application
ECN012-12S-GS is CENO’s new customized high speed slip ring with through hole & 12 circuits for signal for industrial applications. Function slip ring with high speed is often apply to the Test facilities and instruments, Eddy current testing machinery and Non-destructive detector. Over the past 20+ years, CENO’s engineers have developed the capability to design and manufacture advance motion control products for industrial, civilian and defense applications where precise control of force, velocity are critical. We have over 5000 designs, if you do not see a slip ring in our product list to match your requirements, please contact us for assistance.
Features
Applications
Optional
Specification
|
ECN012-12S-GS |
Specification |
| Current & Circuits | 12 circuits * 1A |
| Rating Voltage |
380 VAC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Electrical Noise | Max 30mΩ |
| Operating speed | 0~3000rpm |
| Contact material | Precious Metal |
| Housing material | Aluminum alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60% |
| IP protection grade | IP51 |
| Lead wire size | AW24# Tin coated Teflon® UL |
|
Lead wire length |
Rotor : 300 mm Stator : 300 mm |
| External diameter | Ø12.5mm |
| Installation | Fix rotor side on guest shaft with screws |
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
Contact Person: Lam
Tel: +8615767660191
