Economical Solid Power Electrical Slip Ring Assembly To Vehicular

Product Details:

Place of Origin:	China
Brand Name:	CENO
Certification:	CE,RoHS,ISO9001,UL
Model Number:	ECN000-03P2-12P1

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Carton/As request
Delivery Time:	1 week
Payment Terms:	T/T,Paypal, Western Union
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Current & Circuits:	3circuits10A; 12circuits5A	Rating Voltage:	0~400VAC@50Hz
Dielectric Strength:	≥1000VAC@50Hz	Isolation Resistance:	≥500MΩ@500VDC
Electrical Noise:	≤30mΩ (50rpm)	Operating Speed:	0~300rpm
Contact Material:	Precious Metal	Housing Material:	Aluminum Alloy
Working Temperature:	-20°C~+60°C	Working Humidity:	60%
IP Protection Grade:	IP54	Lead Wire Size:	AWG20# Wire Teflon® UL 3 G 1.5mm²
Lead Wire Length:	Rotor : 4500mm Stator : 1500mm	Installation:	Fix Up Stator Side With Anti-rotation Side Shaft Drives Rotor Running
External Diameter:	Ø86mm
High Light:	Economical Solid Power Electrical Slip Ring , 300rpm Solid Power Electrical Slip Ring , Electrical 400VAC Slip Ring

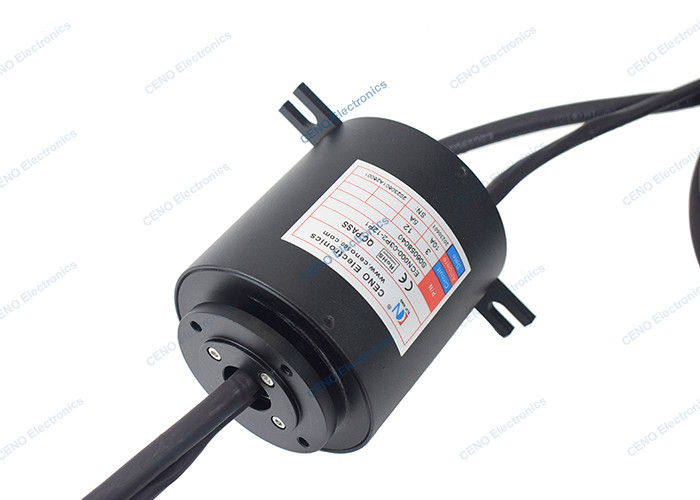

Economical Electrical Power Slip Ring with Solid Apply to Vehicular

ECN000-03P2-12P1 is CENO new design electrical power slip ring. It’s an economical and popular used on various industrial automatic system. For it’s stable performance, long service life and suitable rugged environments always applied to the Mine, Offshore, down-hole or Vehicular, even modern military vehicular, such as the tanks, turret. When it combined with the data signal or optic fiber, can be used on the commander station and the infrared sight. For more information about how CENO slip ring can fit your specific usages please contact us freely.

Features

Precious metal contacts for signal and data integrity
Supports modern data communication technologies
Install easy

Applications

Automatic machine
Packing machine
Vehicular
Mine
Down-hole machinery

Optional

Circuit, Voltage, Current
Protection Grade
Contact / Housing Materials
Sealing forms
Working speed

Specification

ECN000-03P2-12P1	Specification
Current & Circuits	3circuits10A; 12circuits5A
Rating Voltage	0~400VAC@50Hz
Dielectric strength	≥1000VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Electrical Noise	30mΩ (50rpm)
Contact material	Precious metal
Housing material	Aluminum Alloy
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP54
Operating speed	0~300rpm
Lead wire size	AWG20# Wire Teflon® UL 3 G 1.5mm²
Lead wire length	Rotor : 4500mm Stator :1500mm
External diameter	Ø86mm

Outline Drawing

Economical Solid Power Electrical Slip Ring Assembly To Vehicular 0

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Economical Solid Power Electrical Slip Ring Assembly To Vehicular 1

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Economical Solid Power Electrical Slip Ring Assembly To Vehicular 3

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
