Solid Electrical Power Slip Ring With IP65 Rotary Electrical Joint For Industry

Product Details:

Place of Origin:	China
Brand Name:	CENO
Certification:	CE,RoHS,ISO9001,UL
Model Number:	ECN000-18P2-11P-IP65

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Carton/As request
Delivery Time:	1 week
Payment Terms:	T/T,Paypal, Western Union
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Current & Circuits:	11circuits32A; 18circuits10A	Rating Voltage:	0~380VAC/VDC
Dielectric Strength:	≥1500VAC@50Hz ≥300VAC@50Hz	Isolation Resistance:	≥500MΩ@500VDC ≥100MΩ@300VDC
Electrical Noise:	≤30mΩ (50rpm)	Operating Speed:	0~300rpm
Contact Material:	Precious Metal	Housing Material:	Aluminum Alloy
Working Temperature:	-20°C~+60°C	Working Humidity:	60%
IP Protection Grade:	IP65	Lead Wire Length:	Rotor : 6000mm Stator : 10000mm
External Diameter:	Ø99mm	Lead Wire Size:	AWG10# 16# Wire Teflon ® UL
High Light:	Rotary Electrical Joint Slip Ring , IP65 Electrical Slip Ring , Electrical Slip Ring 300rpm

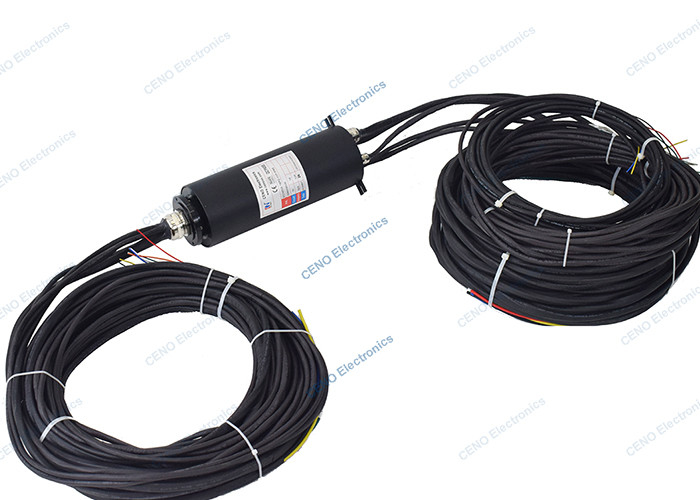

Solid Electrical Power Slip Ring With IP65 Rotary Electrical Joint For Industry

ECN000-18P2-11P-IP65 is CENO new solid electrical slip ring with IP65 and belongs to the commercial industrial slip rings. As a typical basic slip ring can be integrated many kinds of data signals, rotary unions or rotary joints for different specific applications. CENO solid slip ring features fiber brush technology which offers several advantages over conventional slip ring technology including multiple points of contact force per fiber and low contact wear rates. For more information about what CENO slip ring can be integrated and how to fit your specific applications please contact us any time.

Features

Solid electrical collector
Grade IP65 & is optional
Can be integrated various data signal, FORJ or RF Rotary union
Install easily & transmit stably

Applications

Automatic machine
Industrial system
Mine or offshore
Medical equipment
Harsh environment

Optional

Circuit, Voltage, Current
Installations
Contact / Housing Materials
Sealing forms & IP Grade
Working speed

Specification

ECN000-18P2-11P-IP65	Specification
Current & Circuits	11circuits32A; 18circuits10A
Rating Voltage	0~380VAC/VDC
Dielectric strength	≥1500VAC@50Hz ≥300VAC@50Hz
Isolation resistance	≥500MΩ@500VDC ≥100MΩ@300VDC
Electrical Noise	30mΩ (50rpm)
Contact material	Precious Metal
Housing material	Aluminum Alloy
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP65
Operating speed	0~300rpm
Lead wire size	AWG10# 16# Wire Teflon ® UL
Lead wire length	Rotor : 6000mm Stator : 10000mm
External diameter	Ø99mm

Outline Drawing

Solid Electrical Power Slip Ring With IP65 Rotary Electrical Joint For Industry 0

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Solid Electrical Power Slip Ring With IP65 Rotary Electrical Joint For Industry 1

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Single channel fiber optic rotary joint 6.8mm OD stainless steel

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Solid Electrical Power Slip Ring With IP65 Rotary Electrical Joint For Industry 3

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
