Name: 100m Ethernet Signal Electrical Capsule Slip Rings Mini 22mm For Medical Equipment
Brand: CENO
SKU: ACN22-12S-01EM 100M
Rating: 4.8 (178 reviews)

Home Products Capsule Slip Ring

100m Ethernet Signal Electrical Capsule Slip Rings Mini 22mm For Medical Equipment

Product Details:

Place of Origin:	China
Brand Name:	CENO
Certification:	CE,RoHS,UL,ISO9001
Model Number:	ACN22-12S-01EM 100M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	Off the shelf
Payment Terms:	T/T,Paypal,Western Union, L/C
Supply Ability:	10000pcs month

Contact Now

Detailed Product Description

Current & Circuits:	1circuit100M Ethernet; 12circuits2A	Rating Voltage:	0~240 VAC/VDC
Dielectric Strength:	≥500VAC@50Hz; ≥100VAC@50Hz	Isolation Resistance:	≥100MΩ@500VDC; ≥10MΩ@100VDC
Contact Resistance:	≤35mΩ (50rpm)	Contact Material:	Gold - Gold
Housing Material:	Engineer Plastic	Working Temperature:	-40°C~+60°C
Working Humidity:	≤60%RH	Protection Grade:	IP40
Operating Speed:	0~100rpm	Lead Wire Length:	Rotor:1000mm±20mm; Stator:900mm±20mm
External Diameter:	Ø22mm
High Light:	22mm electrical capsule slip rings , medical equipment electrical capsule slip rings , 22mm capsule slip ring

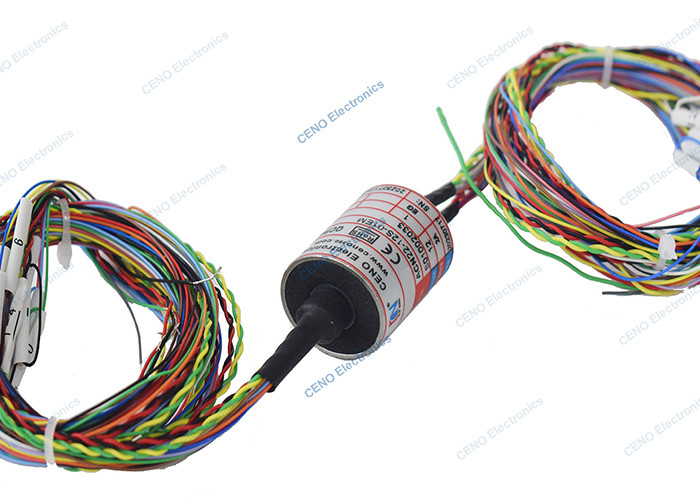

100M Ethernet Signal Mini Slip Ring Capsule external diameter Ø22mm for medical equipment

ACN22-12S-01EM is a new miniature slip ring capsule with 13 circuits for 100M Ethernet and signals which designed for medical equipment. CENO economical compact slip ring capsule family allow tremendous flexibility in dealing with system size requirements when large versions are not an option. Mini slip ring capsule with up to 125 circuits are available. Support many kinds of data, signal combined power transmission. Always apply to the drones, traffic system, turret on a vehicle etc, for more information about CENO miniature slip ring, please contact us freely.

Features

u 1,2,3...125 circuits optional

u Small compact structure with military grade surface treatment

u Install easily & transmit stably & can integrated various data

Applications

u Solar trackers

u LED automatic equipment

u Drones

u Robotics

u Medical equipment

Optional

u Circuits, Voltage, Current

u Data & signal types

u Contact / Housing Materials

u Protection grade

Lead wire size & length

Specification

ACN22-12S-01EM	Specification
Current & Circuits	1circuit100M Ethernet; 12circuits2A
Rating Voltage	0~240VAC/VDC
Dielectric strength	≥500VAC@50Hz; ≥100VAC@50Hz
Isolation resistance	≥100MΩ@500VDC; ≥10MΩ@100VDC
Contact resistance	≤35mΩ (50rpm)
Contact material	Gold - Gold
Housing material	Engineer Plastic
Working temperature	-40°C~+60°C
Working humidity	≤60%RH
Protection Grade	IP40
Operating speed	0~100rpm
Lead wire length	Rotor:1000mm±20mm; Stator:900mm±20mm
External diameter	Ø22mm

Outline drawing

100m Ethernet Signal Electrical Capsule Slip Rings Mini 22mm For Medical Equipment 0

Support and Services:

Capsule Slip Ring Technical Support and Service

We provide technical support and service for our Capsule Slip Ring products. Our team of experts is available to assist you with any questions you may have about the product, its installation, its use and maintenance. We also offer troubleshooting and repair services if the product requires it. If you need to replace any parts of the product, we can provide them to you quickly and at a competitive price.

We also provide regular maintenance and inspection services for our Capsule Slip Ring products. This helps to ensure that the product is functioning properly and that it is in good condition. We also provide warranty coverage for our products, so you can rest assured that your purchase is protected.

Our customer service team is available to answer any questions you may have about our Capsule Slip Ring products. We are dedicated to providing the best possible support and service for our customers, and we look forward to hearing from you.

FAQ:

Q1. What is CENO Capsule Slip Ring?: A1. CENO Capsule Slip Ring, model number CCN-10J, is a rotary electrical connector, which can transmit power and signal from a stationary structure to a rotating one.
Q2.Where is CENO Capsule Slip Ring made?: A2. CENO Capsule Slip Ring is made in China.
Q3.What certifications do CENO Capsule Slip Ring have?: A3. CENO Capsule Slip Ring is certified by CE,RoHS,UL,ISO9001.
Q4.What is the minimum order quantity of CENO Capsule Slip Ring?: A4. The minimum order quantity of CENO Capsule Slip Ring is 1.
Q5.What is the delivery time of CENO Capsule Slip Ring?: A5. CENO Capsule Slip Ring is off the shelf and can be delivered quickly.
