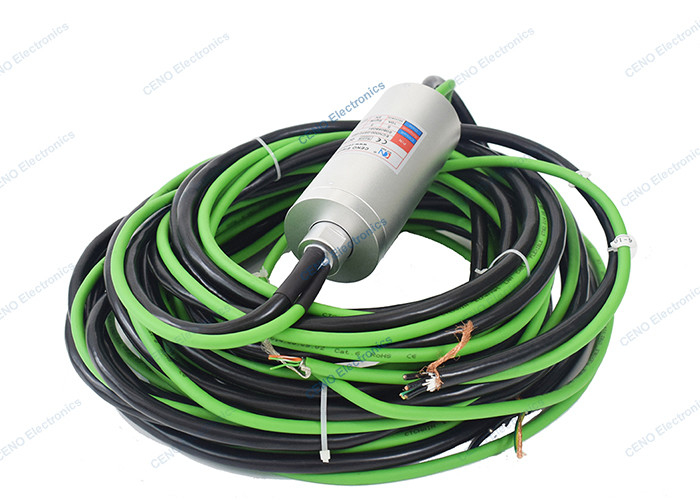

Industrial Signal Profinet Ethernet Slip Ring 250 Rpm Combine Electrical Power Collector
  • Industrial Signal Profinet Ethernet Slip Ring 250 Rpm Combine Electrical Power Collector
  • Industrial Signal Profinet Ethernet Slip Ring 250 Rpm Combine Electrical Power Collector
  • Industrial Signal Profinet Ethernet Slip Ring 250 Rpm Combine Electrical Power Collector
Industrial Signal Profinet Ethernet Slip Ring 250 Rpm Combine Electrical Power Collector

Industrial Signal Profinet Ethernet Slip Ring 250 Rpm Combine Electrical Power Collector

Place of Origin China
Brand Name CENO
Certification CE,RoHS,UL,ISO9001
Model Number ECN000-05P2-05S
Product Details
Current & Circuits:
5*10A; 1*Profinet
Rating Voltage:
0~480 VAC/VDC
Dielectric Strength:
≥1000VAC@50Hz (P) ≥250VAC@50Hz (S)
Isolation Resistance:
≥5000MΩ@500VDC ≥200MΩ@250VDC
Contact Resistance:
≤30mΩ (50rpm)
Working Temperature:
-20°C~+80°C
Working Humidity:
60%RH
IP Protection Grade:
IP51
Operating Speed:
0~250 Rpm
Contact Material:
Precious Metal
Housing Material:
Aluminum Alloy
Lead Wire Length:
Rotor: 3000±100mm Stator: 1000±200mm
Lead Wire Size:
4core Shielded Wire; 4core Twisted Shielded Wire
High Light:

250 rpm ethernet slip ring

,

aluminum alloy ethernet slip ring

,

250 rpm ethernet rotary joint

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Carton
Delivery Time
Off the shelf
Payment Terms
T/T,Paypal,Western Union, L/C
Supply Ability
10000pcs month
Product Description


Industrial Ethernet Signal Profinet Slip Ring combine Electrical Power Collector


ECN000-05P2-05S is CENO new customized profinet slip ring which is designed for medical equipment. Industrial Ethernet also called Profinet is an Ethernet technology used in the field of industrial control. It is technically compatible with commercial Ethernet, but the actual products and applications are completely different. CENO Profinet slip ring parameters can be designed as customer applications, 1000M Ethernet inner hole 0-1 20mm optional, 100M Ethernet inner hole 0-200mm optional. For more information about how CENO profinet slip ring can fit your specific applications please contact us.





Features

  • High communication rate, even to support 1000Mbps
  • Can be integrated and transfer power & other complex signals
  • Various connector type available


Applications

  • Automatic machine
  • Mechanical equipment
  • Power engineer machine
  • Turntable test equipment
  • Medical equipment


Optional

  • Circuit, Voltage, Current
  • Signal types
  • Contact / Housing Materials
  • Protection grade
  • Working speed




Specification

Current & Circuits

5 circuits * 10A;  1circuit * Profinet

Rating Voltage0~480 VAC/VDC
Dielectric strength

≥1000VAC@50Hz (P)
≥250VAC@50Hz (S)

Isolation resistance

≥500MΩ@500VDC (Electric)
≥200MΩ@250VDC(Power)

Contact resistance≤30mΩ (50rpm)
Working Temperature-20°C~+80°C
Working humidity60%RH
IP protection gradeIP51
Operating speed0~250 rpm
Contact materialPrecious Metal; Gold to Gold
Housing materialAluminium alloy
Lead wire size

4core shielded wire;
4core twisted shielded wire

Lead wire length

Rotor: 3000±100mm
Stator: 1000±200mm





Outline drawing
Industrial Signal Profinet Ethernet Slip Ring 250 Rpm Combine Electrical Power Collector 0








More similar information about Industrial Ethernet Signal Profinet Slip Ring combine Electrical Power Collector



CENO has been designing and manufacturing slip rings for around 20 years. Our latest product, the Radar Antenna Slip Ring, is the perfect solution for radar antenna applications. This slip ring is specifically designed to combine different electrical and signal components including power, Ethernet signal, and RS422. Its flange design makes it easy to install and it operates flawlessly under all kinds of weather conditions.

The Radar Antenna Slip Ring is an essential component for any radar antenna application. Its compact design ensures that it fits perfectly in tight spaces, and it can transfer data and power between stationary and rotating parts of the antenna with minimal resistance. The slip ring also provides reliable and accurate transfer of Ethernet signals, ensuring smooth communication between the antenna and the radar system.

One of the key features of this slip ring is its low-temperature capabilities. The Radar Antenna Slip Ring can operate reliably in temperatures as low as -40°C, making it ideal for use in harsh environments. Additionally, its innovative design makes it highly resistant to wear and tear, and it requires very minimal maintenance.

Installation of the Radar Antenna Slip Ring is quick and easy, thanks to its flange design. Its high-quality materials ensure that it will last a long time under all kinds of weather conditions. With our product, you can be assured that you are getting the best quality for your money.

In conclusion, the Radar Antenna Slip Ring is a must-have for any radar antenna application. It is specifically designed to transfer different electrical and signal components while operating reliably under low-temperature conditions. Its flange design makes it easy to install and minimizes any possible downtime. With its innovative design, reliability, and low maintenance requirements, it is the perfect solution for your radar antenna needs.





Industrial Signal Profinet Ethernet Slip Ring 250 Rpm Combine Electrical Power Collector 1

Industrial Signal Profinet Ethernet Slip Ring 250 Rpm Combine Electrical Power Collector 2



Industrial Signal Profinet Ethernet Slip Ring 250 Rpm Combine Electrical Power Collector 3
