| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN025-16P3-02S |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Circuits & Current: | 16 Circuits*15A,1 Group*Signal | Rating Voltage: | 0~240VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥1000VAC@50Hz ≥300VAC@50Hz | Isolation Resistance: | ≥500MΩ@500VDC ≥100MΩ@300VDC |
| Contact Resistance: | 30mΩ (50rpm) | Contact Material: | Precious Metal |
| Housing Material: | Aluminum Alloy | Working Temperature: | -20°C~+60°C |
| Working Humidity: | 60 %RH | IP Protection Grade: | IP51 |
| Operating Speed: | 0~300rpm | Lead Wire Size: | AW 14# Wire Teflon® UL |
| Lead Wire Length: | Rotor:2000mm Stator:5000mm | Inner Diameter: | Ø25.4mm |
| External Diameter: | Ø86mm | Installation: | Fix Up Stator Side With Anti-rotation Side Shaft Drives Rotor Running |
| High Light: | 240v through hole slip ring,thermocouple signal through hole slip ring,240v electrical through hole slip ring |
||

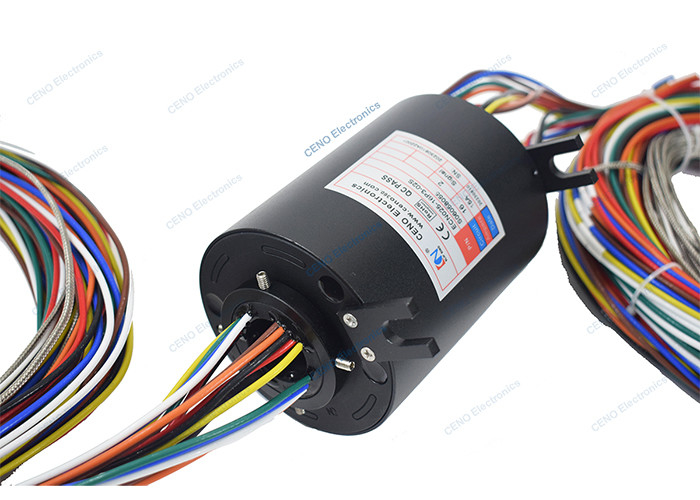

Through Hole Termo couple Signal Slip Ring with Conductive Collector Ring
ECN025-16P3-02S is CENO new through hole slip ring which combine conductive collector with thermo couple signals. It’s called Thermo couple signal slip ring also, this special slip ring solutions for thermo couples usually refer to special slip rings and electrical collectors that can stably and accurately transmit thermistor and thermocouple signals, with small temperature changes, perform stably and no jumps. CENO has many year experience in designing and produce thermo couple slip ring, for more information about how CENO slip ring can fit your applications please contact us.
Features
Applications
Optional
Specification
|
ECN025-16P3-02S |
Specification |
| Current & Circuits |
16 circuits*15A,1 group*Signal |
| Rating Voltage | 0~240 VAC/VDC |
| Dielectric strength |
≥1000VAC@50Hz ≥300VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC ≥100MΩ@300VDC |
| Contact resistance | ≤30mΩ (50rpm) |
| Working Temperature | -20°C~+60°C |
| Working humidity | 60%RH |
| IP protection grade | IP51 |
| Operating speed | 0~300 rpm |
| Contact material | Precious Metal |
| Housing material | Aluminum Alloy |
| Lead wire size |
AWG14# Tin coated Teflon® UL K-Thermocouple cable |
| Lead wire length | Rotor: 2000mm; Stator: 5000mm |
| Inner Diameter | Ø25.4mm |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
