| Place of Origin: | China |
| Brand Name: | CENO |
| Certification: | CE,RoHS,ISO9001,UL |
| Model Number: | ECN038-16P3 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton/As request |
| Delivery Time: | 1 week |
| Payment Terms: | T/T,Paypal, Western Union |
| Supply Ability: | 500pcs per month |
| Circuits & Current: | 16 Circuits*15A | Rating Voltage: | 0~380 VAC/VDC |
|---|---|---|---|
| Dielectric Strength: | ≥1000VAC@50Hz | Isolation Resistance: | ≥500MΩ@500VDC |
| Contact Resistance: | 30mΩ (50rpm) | Contact Material: | Precious Metal |
| Housing Material: | Aluminum Alloy | Working Temperature: | -20°C~+60°C |
| Working Humidity: | 60 %RH | IP Protection Grade: | IP51 |
| Operating Speed: | 0~300rpm | Lead Wire Size: | AW 14# Wire Teflon® UL |
| Lead Wire Length: | Rotor: 300mm; Stator: 300mm | Inner Diameter: | Ø38.1mm |
| External Diameter: | Ø99mm | ||
| High Light: | through hole slip rings collector,power conductive slip rings collector,14awg electrical through hole slip ring |
||

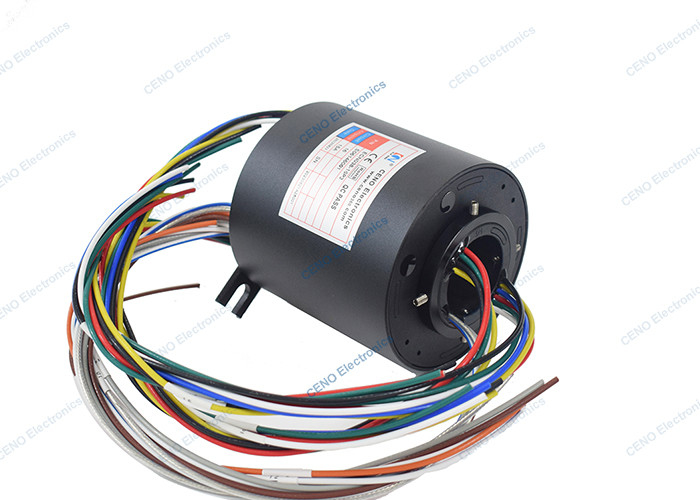

Through Hole Power Coductive Slip Rings Collector with Electrical Rotary Joint
ECN038-16P3 is CENO new standard through hole slip ring with ID38mm and 16 circuits for 15A which is designed for the automatic industrial system . And it’s the economical and higher performance cost compare with other function slip rings. The Hollow shaft slip ring adopt advance fiber brush, Voltage can up to 30KV, current 1-10000A is optional, circuit can be designed to 300 circuits for different environment application. And can be integrated many kinds of data or signals, for more information please contact us.
Features
Applications
Optional
Specification
|
ECN038-16P3 |
Specification |
| Current & Circuits |
16 circuits*15A |
| Rating Voltage |
0~380 VAC/VDC |
| Dielectric strength | ≥1000VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC |
| Contact resistance | ≤30mΩ (50rpm) |
| Working Temperature | -20°C~+60°C |
| Working humidity | 60%RH |
| IP protection grade | IP51 |
| Operating speed | 0~300 rpm |
| Contact material | Precious Metal |
| Housing material | Aluminum Alloy |
| Lead wire size | AWG14# Tin coated Teflon® UL |
| Lead wire length | Rotor: 300mm; Stator: 300mm |
| Inner Diameter | Ø38.1mm |
Outline Drawing
Similar application for the Through Hole Power Coductive Slip Rings Collector with Electrical Rotary Joint
This article is about CENO slip ring is used in X-ray computer tomography in medicine.
CENO have more than 5000 designs for different machinery and application in recently 20years. Tack CENO new product large size for example, which is designed for the CT Scan.
A computed tomography scan (usually abbreviated to CT scan; formerly called computed axial tomography scan or CAT scan) is a medical imaging technique used to obtain detailed internal images of the body. The personnel that perform CT scans are called radiographers or radiology technologists.
CT scanners use a rotating X-ray tube and a row of detectors placed in a gantry to measure X-ray attenuations by different tissues inside the body. The multiple X-ray measurements taken from different angles are then processed on a computer using tomographic reconstruction algorithms to produce tomographic (cross-sectional) images (virtual "slices") of a body. CT scan can be used in patients with metallic implants or pacemakers.
Since its development in the 1970s, CT scanning has proven to be a versatile imaging technique. While CT is most prominently used in medical diagnosis, it can also be used to form images of non-living objects.
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
